Power Flow

WARNING: This page is about a different variant/trim than selected.

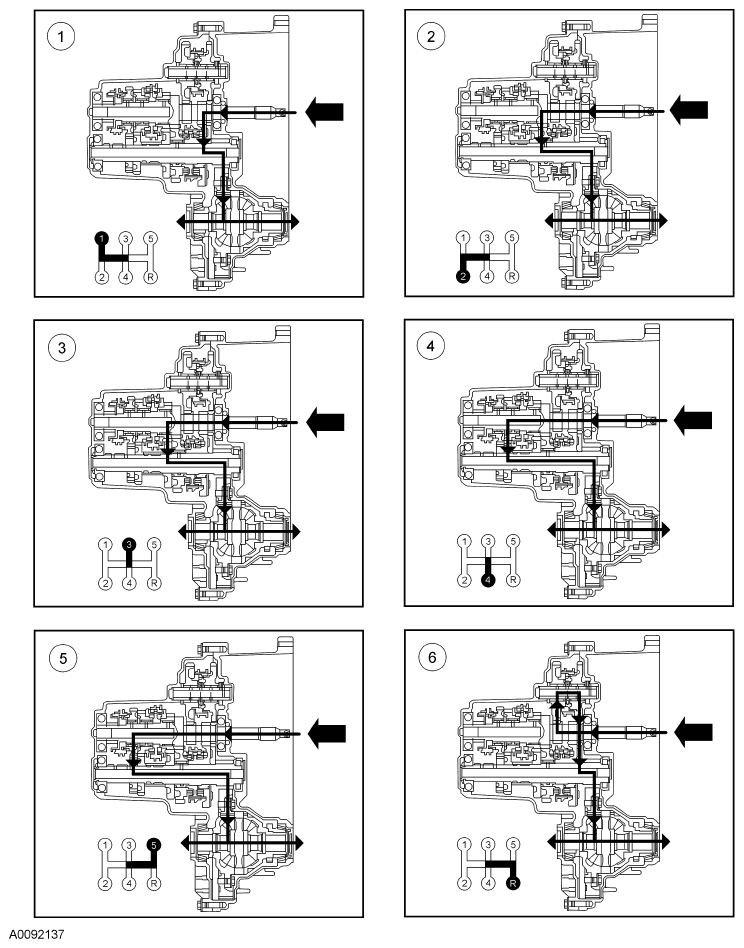

Fig 1: Power Flow Operation Diagram
G06098174Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 1st gear
2 2nd gear
3 3rd gear
4 4th gear
5 5th gear
6 Reverse gear
