Special Tool(s)
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS REFERENCE
| Adapters for 303-290 303-290A-01 | |
| Adapter for 303-290A (Support Leg) 303-290A-03A | |
| Support Bar, Engine 303-290A |

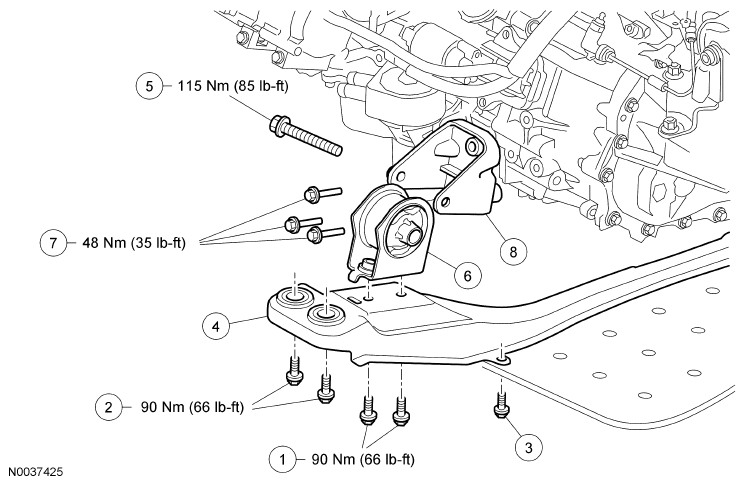

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W706899 | Transaxle front support insulator bolts (2 required) |
| 2 | W706899 | Transaxle front-to-aft crossmember bolts (2 required) |
| 3 | - | Splash shield screw |
| 4 | 10852 | Transaxle front-to-aft crossmember |
| 5 | W711268 | Transaxle front support insulator through bolt |
| 6 | 6E037 | Transaxle front support insulator |
| 7 | W500321 | Transaxle front support insulator bracket bolts (3 required) |
| 8 | 6A060 | Transaxle front support insulator bracket |
