In-Vehicle Temperature and Humidity Sensor: Notes

NOTE: In-vehicle temperature and humidity sensor shown in illustration, in-vehicle temperature sensor similar.

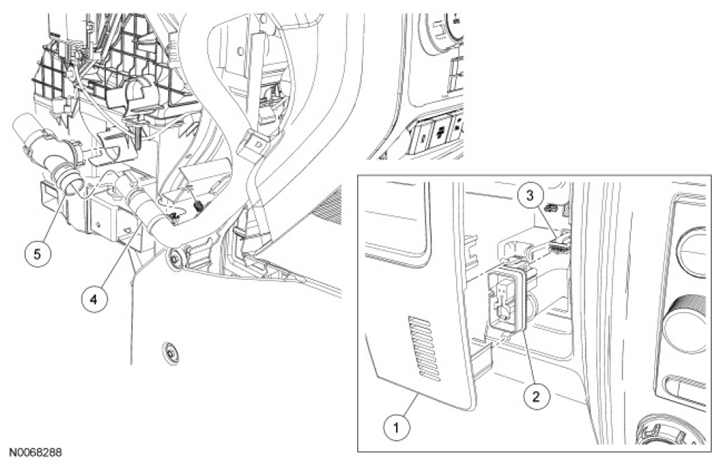

Fig 1: Identifying In-Vehicle Temperature And Humidity Sensor Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	044D70	Instrument cluster finish panel
2	19C734	In-vehicle temperature sensor (2.5L or 3.0L [4V]) or in-vehicle temperature and humidity sensor (hybrid)
3	-	In-vehicle temperature sensor (2.5L or 3.0L [4V]) or in-vehicle temperature and humidity sensor (hybrid) electrical connector (part of 14401)
4	-	Aspirator hose (part of 19C734)
5	19E628	Venturi
