Pinpoint Test Schematics and Connectors
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
For PCM connector views or reference values, refer to REFERENCE VALUES .

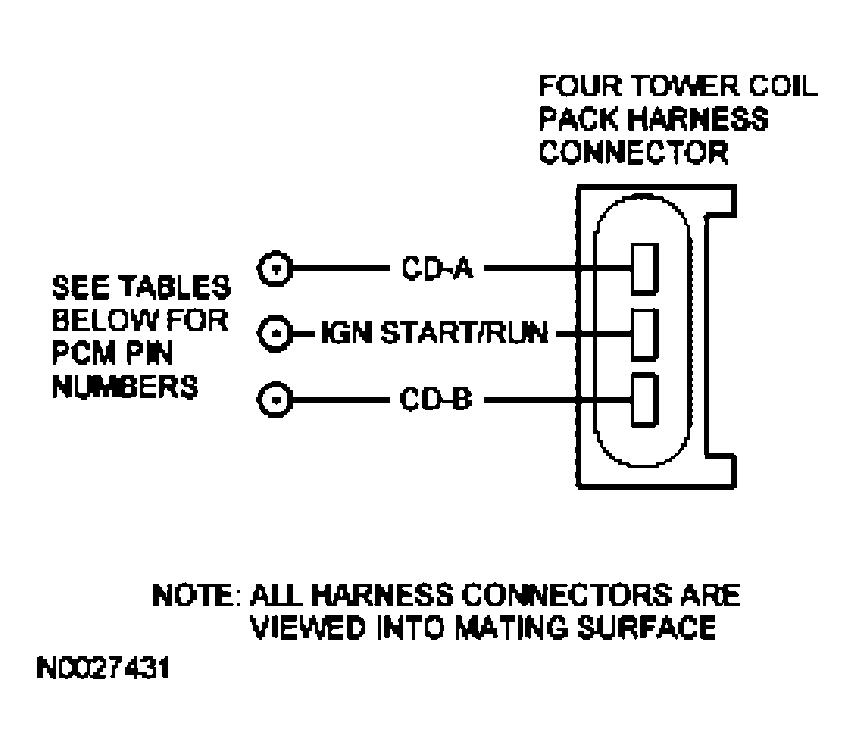

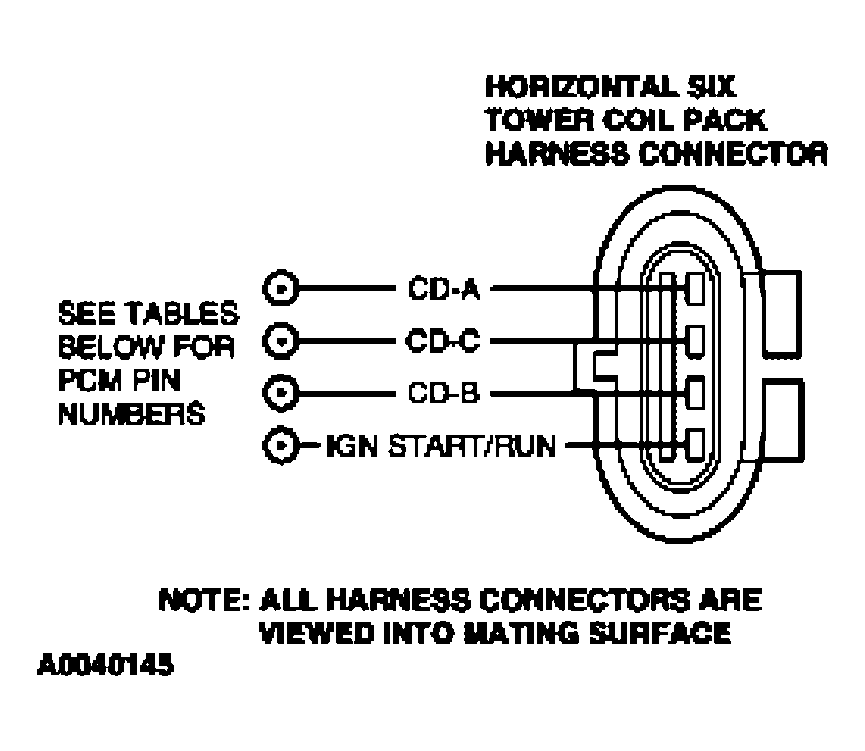

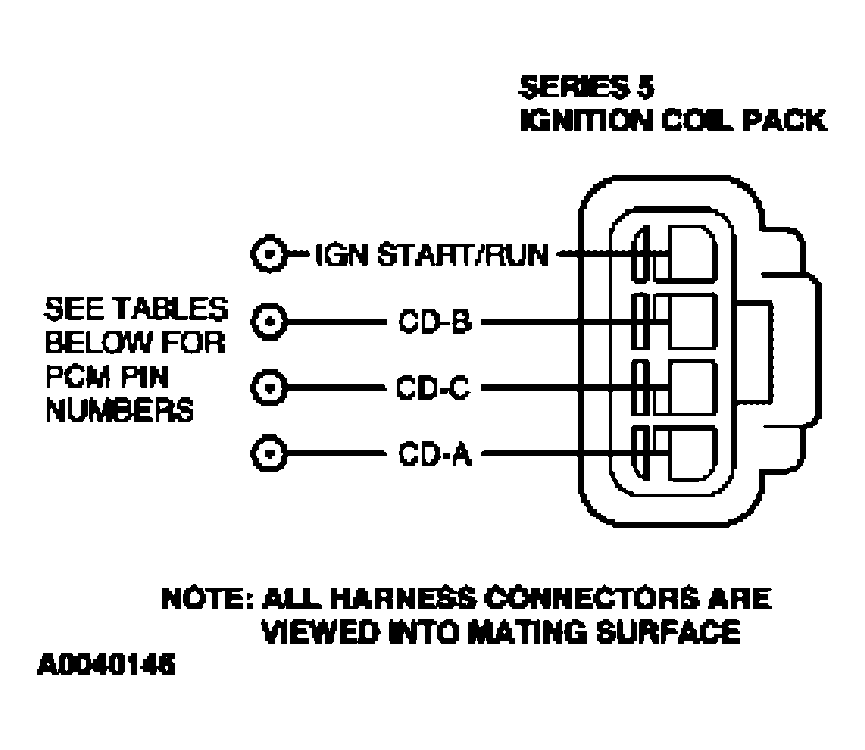

IGNITION COIL TO CYLINDER CORRELATION
| Vehicle | Related DTC | Cylinder Number | Ignition Coil | Coil Driver (CD) | PCM Pin |
|---|---|---|---|---|---|
| 4 cylinders | P0351 | 1 | A | A | 26 |
| P0352 | 2 | B | B | 52 | |
| P0352 | 3 | B | B | 52 | |
| P0351 | 4 | A | A | 26 | |
| 6 cylinders | P0351 | 1 | A | A | 26 |
| P0352 | 4 | B | B | 52 | |
| P0353 | 2 | C | C | 78 | |
| P0351 | 5 | A | A | 26 | |
| P0352 | 3 | B | B | 52 | |
| P0353 | 6 | C | C | 78 | |
| Explorer, Mountaineer 4.0L | P0351 | 1 | A | A | E1 |
| P0352 | 4 | B | B | E12 | |
| P0353 | 2 | C | C | E24 | |
| P0351 | 5 | A | A | E1 | |
| P0352 | 3 | B | B | E12 | |
| P0353 | 6 | C | C | E24 | |
| F-150, Mustang | P0351 | 1 | A | A | E17 |
| P0352 | 2 | B | C | E16 | |
| P0353 | 3 | C | B | E12 | |
| P0351 | 4 | A | B | E12 | |
| P0352 | 5 | B | A | E17 | |
| P0353 | 6 | C | C | E16 |
