Gearshift Lever: Removal

  1. Remove the gearshift lever knob and boot assembly.
  2. Remove the floor console finish panel.
  3. Remove the 2 gearshift cable clips.

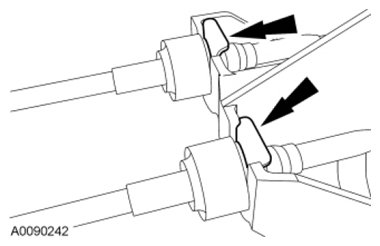

    Fig 1: Locating Gearshift Cable Clips
    G07442994Courtesy of FORD MOTOR CO.
  4. Carefully disconnect the gearshift cables from the gearshift lever.
  5. Remove the 4 gearshift lever nuts.
  6. Remove the gearshift lever.
