Transaxle Rear Support Insulator: Notes

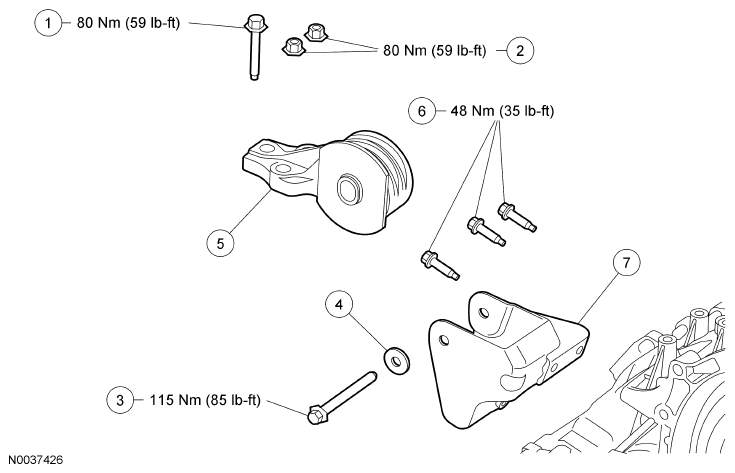

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500743 | Transaxle rear support insulator bolt |
| 2 | W807144 | Transaxle rear support insulator nuts (2 required) |
| 3 | W710173 | Transaxle rear support insulator through bolt |
| 4 | - | Washer (part of 6E037) |
| 5 | 6E037 | Transaxle rear support insulator |
| 6 | W500234 | Transaxle rear support insulator bracket bolts (3 required) |
| 7 | 7G034 | Transaxle rear support insulator bracket |
