Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center Instrument Panel Finish Panel - Center.

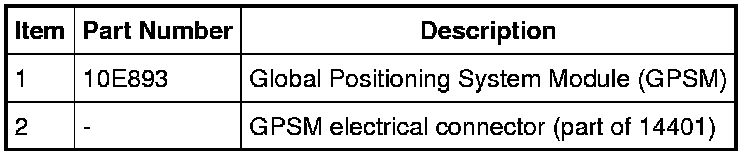

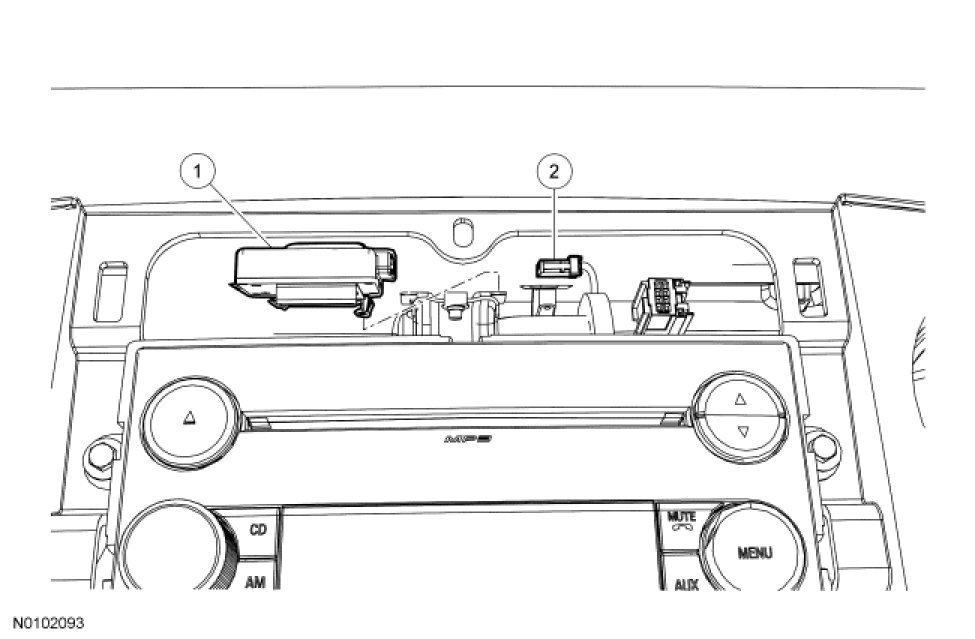

2. Release the clips and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
