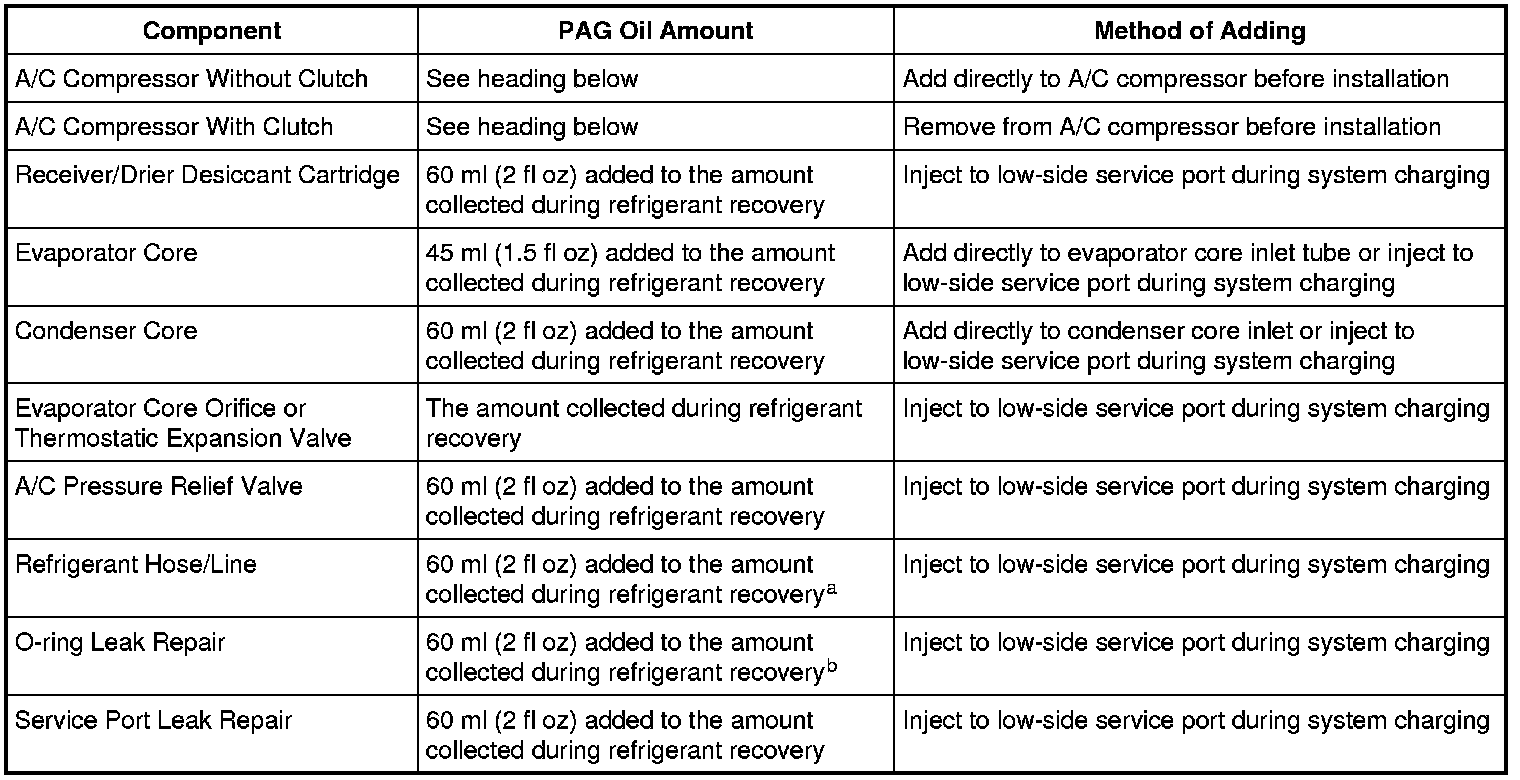

Capacity Specifications

Item Motorcraft(R) PAG Refrigerant Compressor Oil YN-12-D
Specification WSH-M1C231-B
Fill Capacity 207 ml (7 fl oz)










a If an excessive amount of refrigerant oil is lost due to a hose rupture/separation or other damage, the total system refrigerant oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the refrigerant oil amount by the number of O-ring leaks being repaired.
