Variable Valve Timing Solenoid: Service and Repair

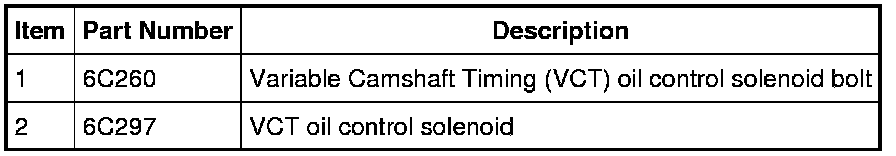

Variable Camshaft Timing (VCT) Oil Control Solenoid

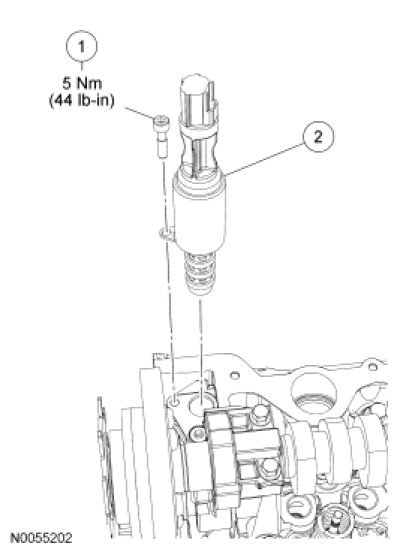

NOTE: LH shown, RH similar.











Removal and Installation

1. Remove the valve cover. For additional information, refer to Engine - 5.4L (3V) Valve Cover - LH Valve Cover - RH.

2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.
- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
