Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

1. Disconnect the ignition coil-on-plug electrical connector.

2. Remove the bolt and the ignition coil-on-plug.
- Remove the ignition coil-on-plug, using a twisting motion while pulling up on the ignition coil-on-plug.

- To install, tighten to 6 Nm (53 lb-in).

3. NOTE: Verify that the ignition coil-on-plug spring is correctly located inside the ignition coil-on-plug boot and that there is no damage to the tip of the boot.

To install, reverse the removal procedure.

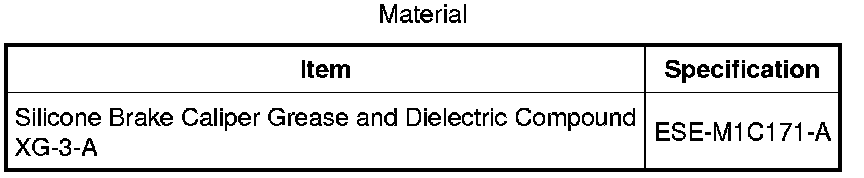

- Apply a light coat of dielectric compound to the inside of the ignition coil boots.
