Pump Assembly: Disassembly

Remove the front pump washer.

Fig 1: Removing Front Pump Washer
Courtesy of FORD MOTOR CO.
If the O-ring seal was not removed during disassembly, remove and discard the front pump O-ring seal from the pump assembly.

Fig 2: Removing Front Pump O-Ring Seal From Pump Assembly
Courtesy of FORD MOTOR CO.

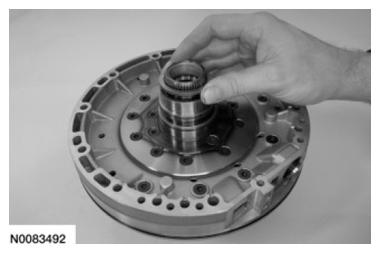

Remove and discard the front pump seal rings from the stator support.

Fig 3: Removing Front Pump Seal Rings From Stator Support
Courtesy of FORD MOTOR CO.

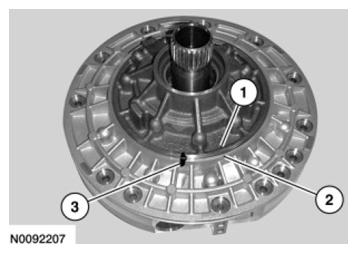

Index-mark the pump body to the pump plate assembly.
1. Pump body
2. Pump plate assembly
3. Index mark

  Fig 4: Identifying Pump Body And Pump Plate Assembly
  Courtesy of FORD MOTOR CO.

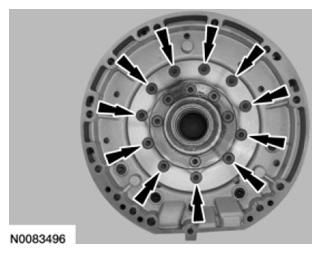

Remove the 11 pump plate assembly-to-pump body bolts.

Fig 5: Locating Pump Plate Assembly-To-Pump Body Bolts
Courtesy of FORD MOTOR CO.

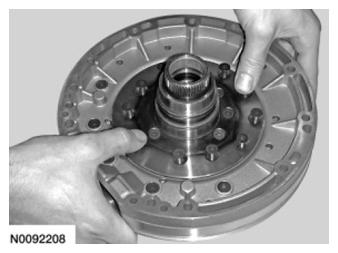

Push down on the loose pump plate assembly-to-pump body bolts to remove the pump body from the pump plate assembly and remove the 11 bolts.

Fig 6: Pushing Down On Pump Plate Assembly-To-Pump Body Bolts
Courtesy of FORD MOTOR CO.

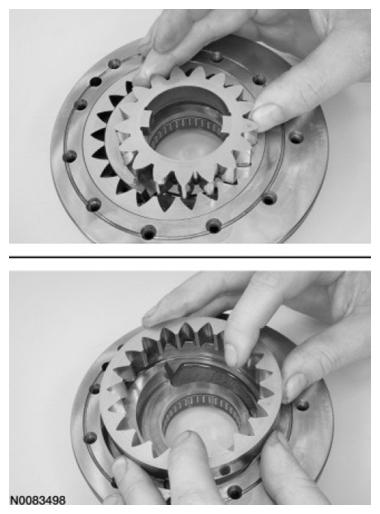

Remove the fluid pump gears.

Fig 7: Removing Fluid Pump Gears
Courtesy of FORD MOTOR CO.

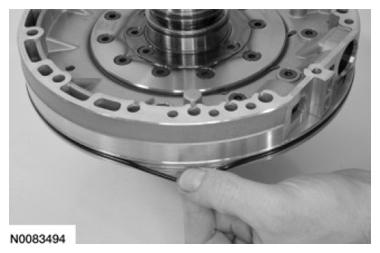

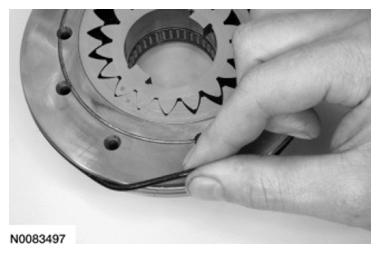

Remove and discard the pump body outer seal.

Fig 8: Removing Pump Body Outer Seal
Courtesy of FORD MOTOR CO.
Inspect the inner and the outer pump gears for damage.
- Clean all pump components in solvent.
- Dry the parts with compressed air.
- Inspect the pump gears, faces, gear teeth and mating surfaces for damage or scoring.
- Install a new pump as necessary.

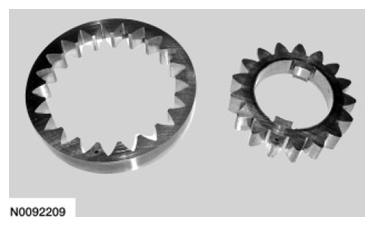

  Fig 9: Exploded View Of Inner And Outer Pump Gears
  Courtesy of FORD MOTOR CO.

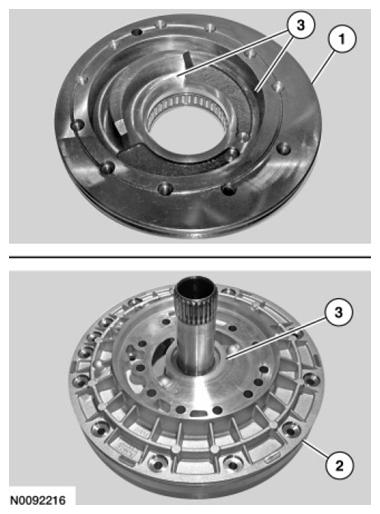

Inspect the pump body and pump plate thrust surfaces for damage or scoring.
1. Pump body
2. Pump plate assembly
3. Pump gear thrust surfaces

  Fig 10: Locating Pump Body, Pump Plate Assembly And Pump Gear Thrust Surfaces
  Courtesy of FORD MOTOR CO.

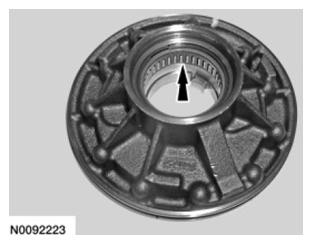

Inspect the torque converter hub bearing for damage or scoring. Make sure that the bearing rotates smoothly.

Fig 11: Locating Torque Converter Hub Bearing
Courtesy of FORD MOTOR CO.
