Climate Control - EMTC

Ambient Air Temperature Sensor

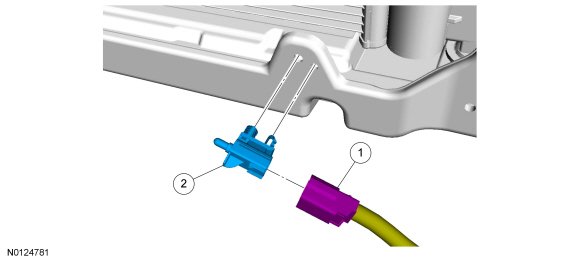

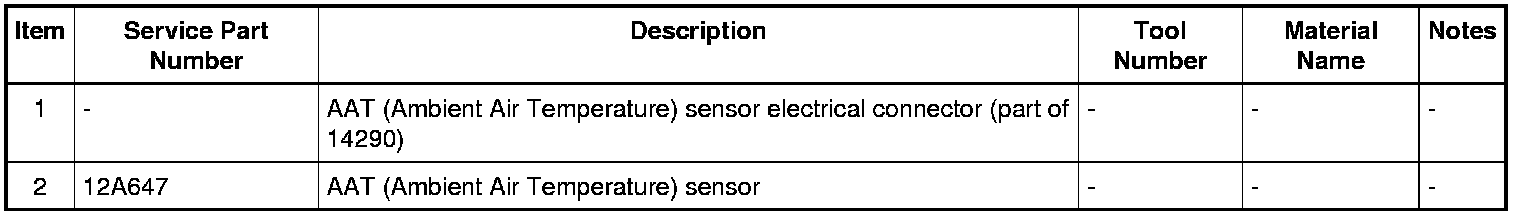

Exploded View










Removal

1. Remove the front bumper cover. REFER to Bumper Cover - Front Service and Repair.

2. Disconnect the ambient air temperature sensor electrical connector and remove the ambient air temperature sensor.

Installation

1. Install the ambient air temperature sensor and connect the ambient air temperature sensor electrical connector.

2. Install the front bumper cover. REFER to Bumper Cover - Front Service and Repair.
