Ambient Light Sensor: Service and Repair

Light Sensor

WARNING: Before beginning any service procedure, REFER to Safety Warnings. Failure to follow this instruction may result in serious personal injury [1][2]Safety Warnings.

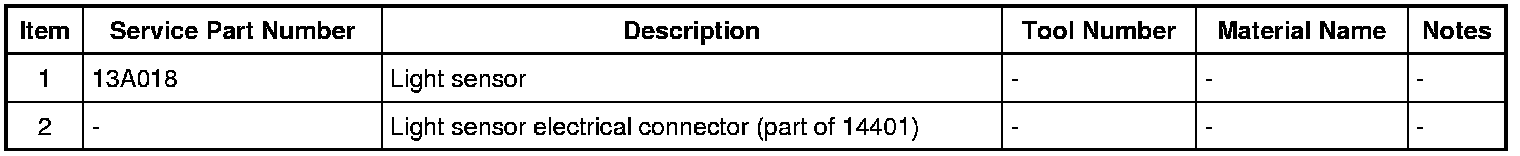

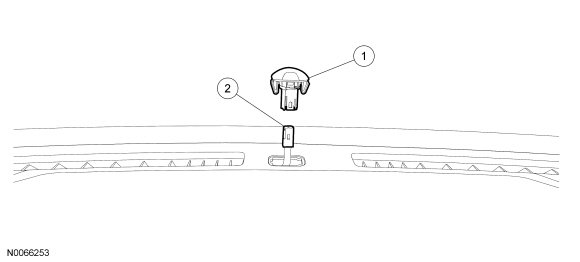

Exploded View










Removal

1. Using a non-marring suitable tool, remove and disconnect the light sensor.

Installation

1. Connect the light sensor electrical connector and install the sensor in the dash.
