Keyless Entry Keypad Connector - C500
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry Keypad Connector - C500

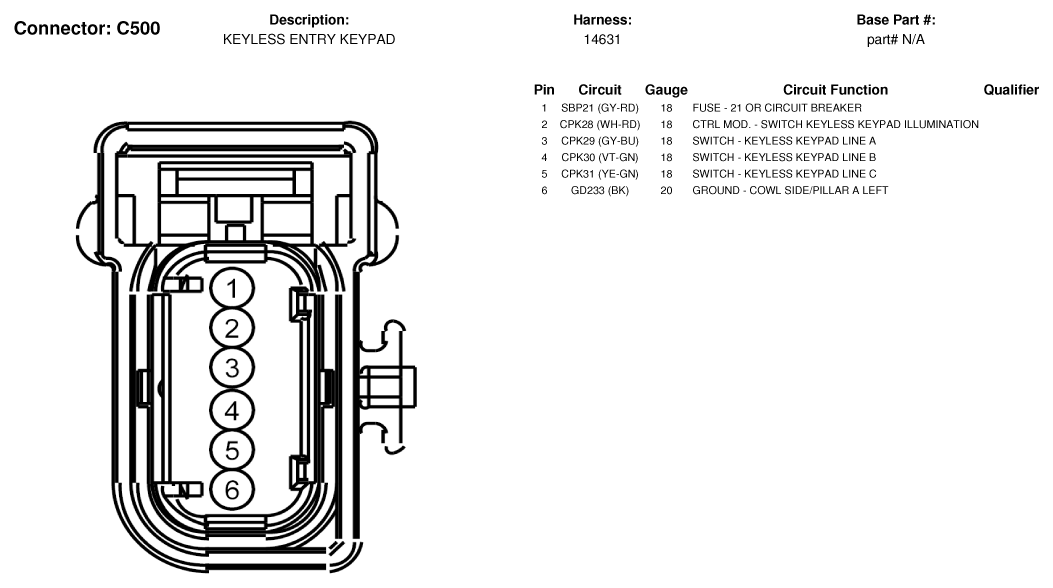

Fig 1: Keyless Entry Keypad Connector End View (C500)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
