Exploded View

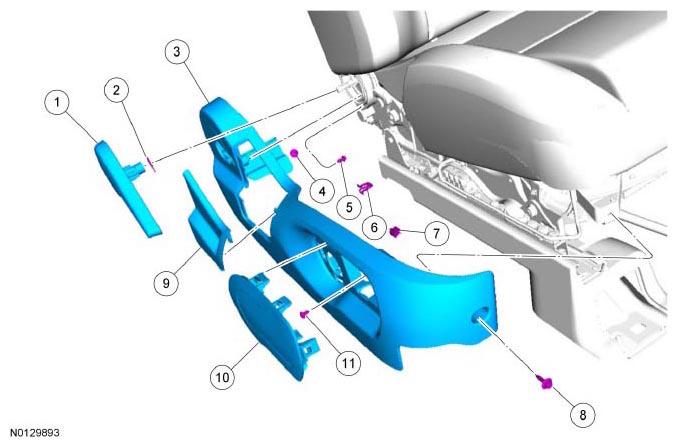

Figure 1: Cushion Side Shield - Manual Track With Manual Recline
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 62418 | Manual recliner handle |
| 2 | W790163 | Manual recliner handle clip |
| 3 | 62186 | Cushion side shield |
| 4 | W706676 | Pin type retainer |
| 5 | W506841 | Screw |
| 6 | W713010 | Cushion side shield retainer |
| 7 | W711045 | Cushion side shield retainer |
| 8 | W505153 | Screw |
| 9 | 61692 | Cushion side shield cover |
| 10 | 63258 | Cushion side shield bezel |
| 11 | W713899 | Screw |

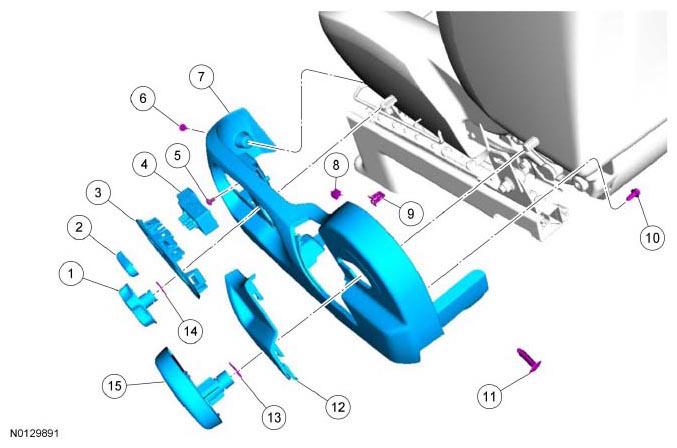

Figure 2: Cushion Side Shield - Power Track With Manual Recline and Manual Lumbar (6-Way Power)
Fig 2: Exploded View Of Cushion Side Shield - Power Track With Manual Recline And Manual Lumbar (6-Way Power)
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 61199 | Manual lumbar handle |
| 2 | 14711 | Seat track control knob |
| 3 | 63258 | Cushion side shield bezel |
| 4 | 14A701 | Seat control switch |
| 5 | W713899 | Screw |
| 6 | W505153 | Screw |
| 7 | 62186 | Cushion side shield |
| 8 | W713010 | Cushion side shield retainer |
| 9 | W711045 | Cushion side shield retainer |
| 10 | W506841 | Screw |
| 11 | W706676 | Pin type retainer |
| 12 | 61692 | Cushion side shield cover |
| 13 | W790163 | Manual recliner handle clip |
| 14 | W790161 | Manual lumbar handle clip |
| 15 | 62418 | Manual recliner handle |

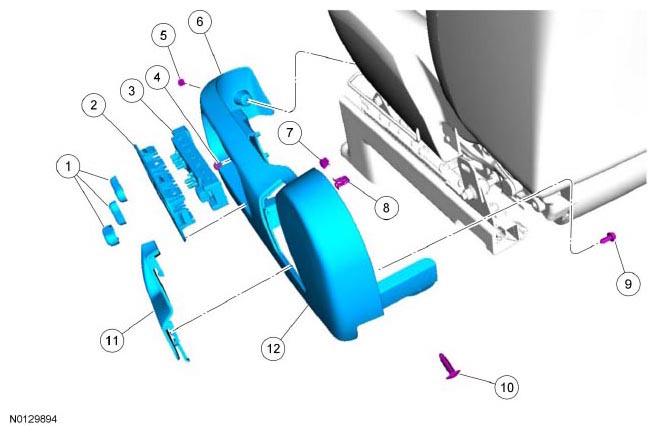

Figure 3: Cushion Side Shield - Power Track With Power Recline and Power Lumbar (10-Way Power)
Fig 3: Exploded View Of Cushion Side Shield - Power Track With Power Recline And Power Lumbar (10-Way Power)
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 14711 | Seat track control knob |
| 2 | 63258 | Cushion side shield bezel |
| 3 | 14A701 | Seat control switch |
| 4 | W713899 | Screw |
| 5 | W505153 | Screw |
| 6 | W713010 | Cushion side shield retainer |
| 7 | W711045 | Cushion side shield retainer |
| 8 | W506841 | Retainer |
| 9 | W706676 | Pin type retainer |
| 10 | 61692 | Cushion side shield cover |
| 11 | 62186 | Cushion side shield |

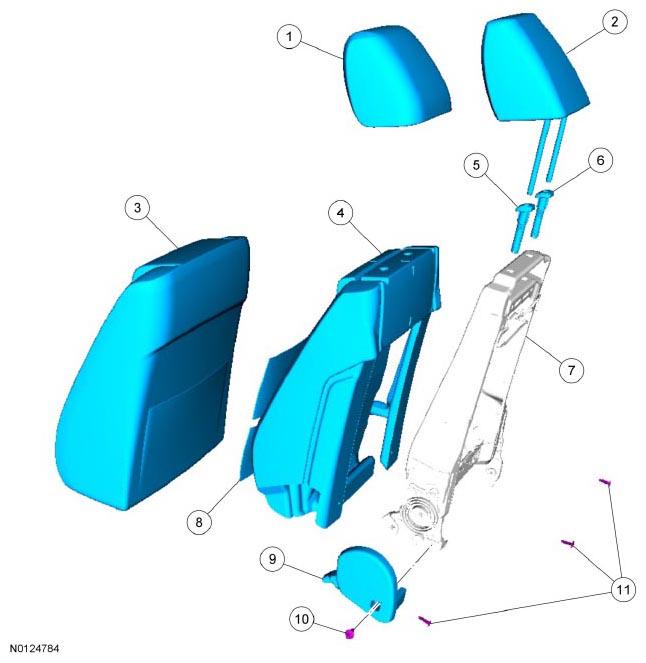

Figure 4: Seat Backrest - Trim Parts
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 611A08 | Head restraint |
| 3 | 64416 | Backrest trim cover |
| 4 | 64810 | Backrest foam pad |
| 5 | 60A16 | Head restraint guide sleeve, master |
| 6 | 610A18 | Head restraint guide sleeve, slave |
| 7 | 61018 | Backrest frame |
| 8 | - | Backrest heater mat (If equipped, part of 61018) |
| 9 | 62186 | Cushion side shield |
| 10 | W710250 | Scrivet |
| 11 | W706676 | Pin type retainer |

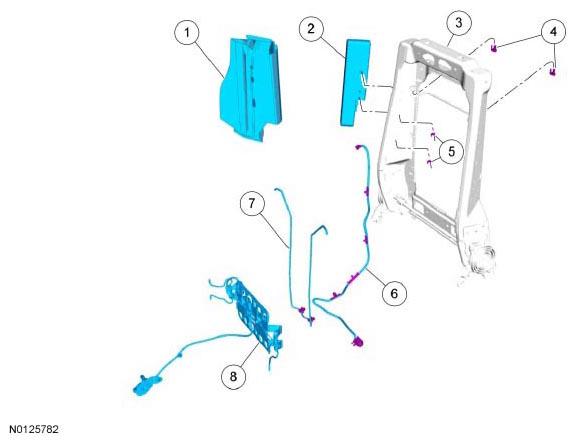

Figure 5: Seat Backrest - Frame parts With Manual Lumbar and Static Lumbar
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 610E38 | Deployment chute | - | - | - |
| 2 | 611D10 | Side air bag module | - | - | - |
| 3 | 61018 | Backrest frame | - | - | - |
| 4 | W790133 | Static lumbar-to-backrest frame clip | - | - | - |
| 5 | W520111 | Side air bag module-to-backrest frame nuts | - | - | 10 Nm (89 lb-in) |
| 6 | 14C687 | Side air bag module jumper wire harness | - | - | - |
| 7 | 64842 | Static lumbar (if equipped) | - | - | - |
| 8 | 65500 | Manual lumbar adjust assembly (if equipped) | - | - | - |

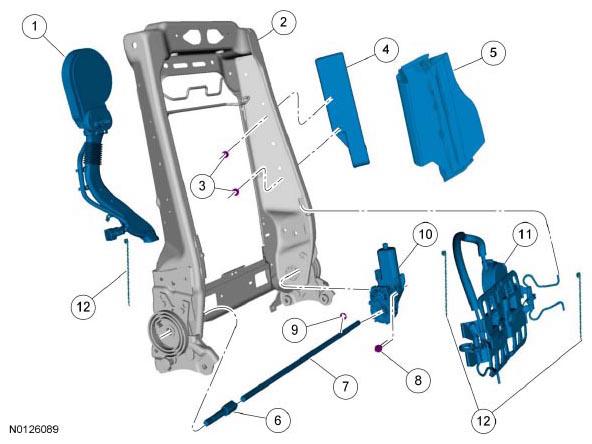

Figure 6: Seat Backrest - Frame parts With Power Recline, Power Lumbar and Climate Controlled Seat System
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 19N550 | Backrest Thermo-Electric Device (TED) (if equipped) | - | - | - |
| 2 | 61018 | Backrest frame | - | - | - |
| 3 | W520111 | Side air bag module-to-backrest frame nuts | - | - | 10 Nm (89 lb-in) |
| 4 | 611D10 | Side air bag module | - | - | - |
| 5 | 610E38 | Deployment chute | - | - | - |
| 6 | 613A68 | Short recliner shaft (if equipped) | - | - | - |
| 7 | 613A68 | Long recliner shaft (if equipped) | - | - | - |
| 8 | W701242 | Power recline motor bolt (if equipped) | - | - | 5 Nm (44 lb-in) |
| 9 | 61479 | Recliner shaft E-clip (if equipped) | - | - | - |
| 10 | 14547 | Power recline motor (if equipped) | - | - | - |
| 11 | 65500 | Power lumbar adjust assembly (if equipped) | - | - | - |
| 12 | - | Zip tie (if equipped) | - | - | - |

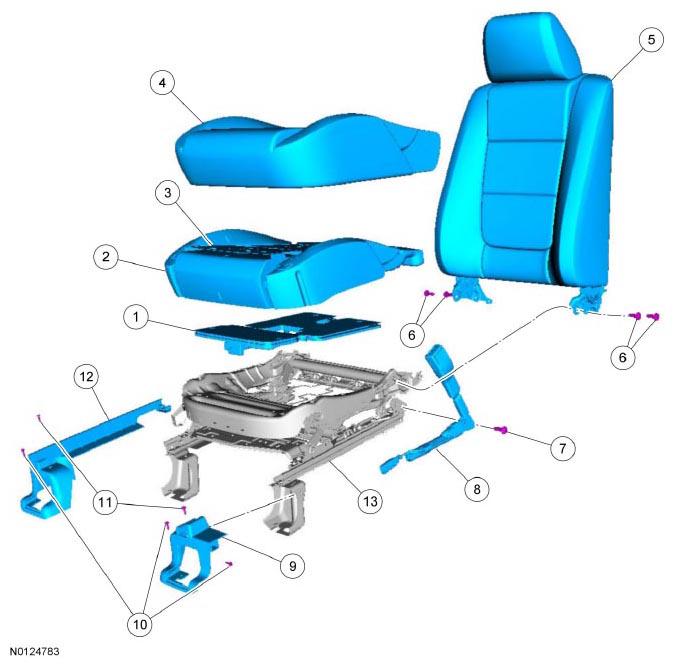

Figure 7: Seat Cushion With An Original Equipment Manufacturer (OEM) Occupant Classification System (OCS) Bladder System and Heat
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Original Equipment Manufacturer (OEM) Occupant Classification System (OCS) (part of 632A22) (Part of Occupant Classification System (OCS) service kit) | - | - | - |
| 2 | - | Passenger cushion foam pad. (part of 632A22 and the Occupant Classification System (OCS) service kit) | - | - | - |
| 2 | 632A23 | Driver cushion foam pad | - | - | - |
| 3 | - | Cushion heater mat (if equipped) (part of 632A22/632A23) | - | - | - |
| 4 | 62900 | Cushion cover | - | - | - |
| 5 | - | Backrest assembly | - | - | - |
| 6 | W707385 | Recliner-to-seat track bolts (4 required) | - | - | REFER to SEAT BACKREST for torque specification and tightening sequence. |
| 7 | W712978 | Safety belt buckle and pretensioner bolt | - | - | 40 Nm (30 lb-ft) |
| 8 | 61202 | Safety belt buckle and pretensioner | - | - | - |
| 9 | 61748 | Seat track cover | - | - | - |
| 10 | W713899 | Screw (3 required) | - | - | - |
| 11 | W715298 | Pin type retainer (2 required) | - | - | - |
| 12 | 61748 | Seat track cover | - | - | - |
| 13 | 61710 | Seat track | - | - | - |

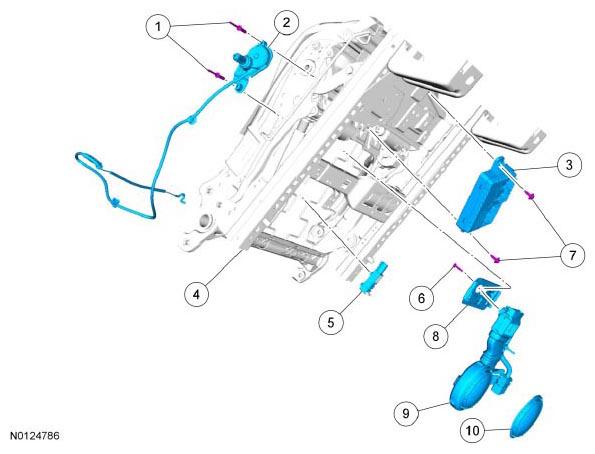

Figure 8: Passenger Power Seat Track
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | W713066 | Rivets (2 required) |
| 2 | - | Manual lumbar adjuster (part of 65500) |
| 3 | 14C724 | Dual Climate Controlled Seat Module (DCSM) |
| 4 | 61710 | Seat track |
| 5 | 14B416 | Seat track position sensor. |
| 6 | - | Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) |
| 7 | W505153 | Screws (2 required) |
| 8 | - | Cushion Thermo-Electric Device (TED) adapter plate (part of 19N550) |
| 9 | 19N550 | Cushion Thermo-Electric Device (TED) |
| 10 | 19E880 | Thermo-Electric Device (TED) filter |

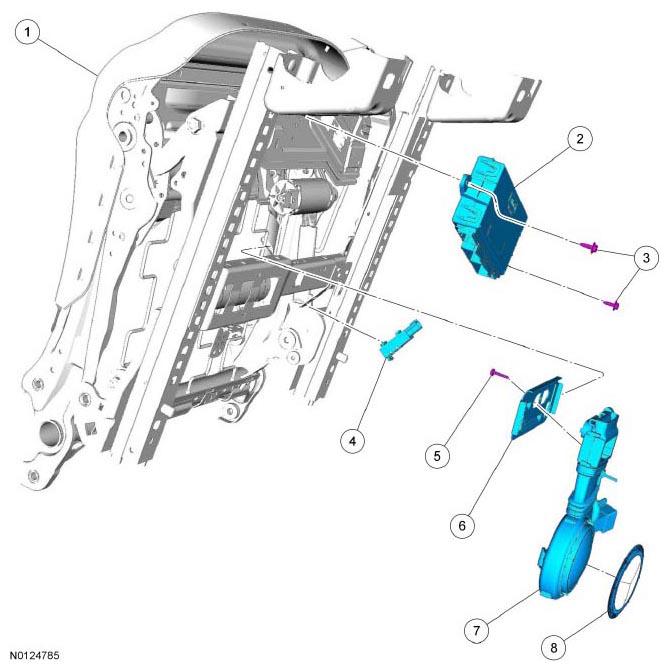

Figure 9: Driver Power Seat Track
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 61710 | Seat track |
| 2 | 14C708 | Driver Seat Module (DSM) |
| 3 | W505153 | Screws (2 required) |
| 4 | 14B416 | Seat track position sensor. |
| 5 | - | Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) |
| 6 | - | Cushion Thermo-Electric Device (TED) adapter plate (part of 19N550) |
| 7 | 19N550 | Cushion Thermo-Electric Device (TED) |
| 8 | 19E880 | Thermo-Electric Device (TED) filter |
