All Terrain Control Module Connector - C3639

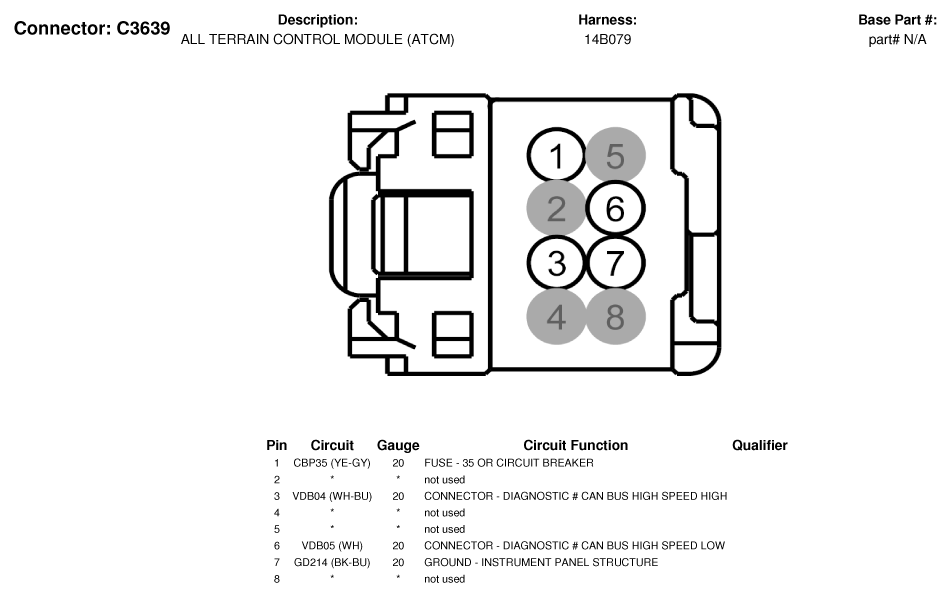

Fig 1: All Terrain Control Module Connector End View (C3639)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
