Occupant Classification System Module Connector - C3159

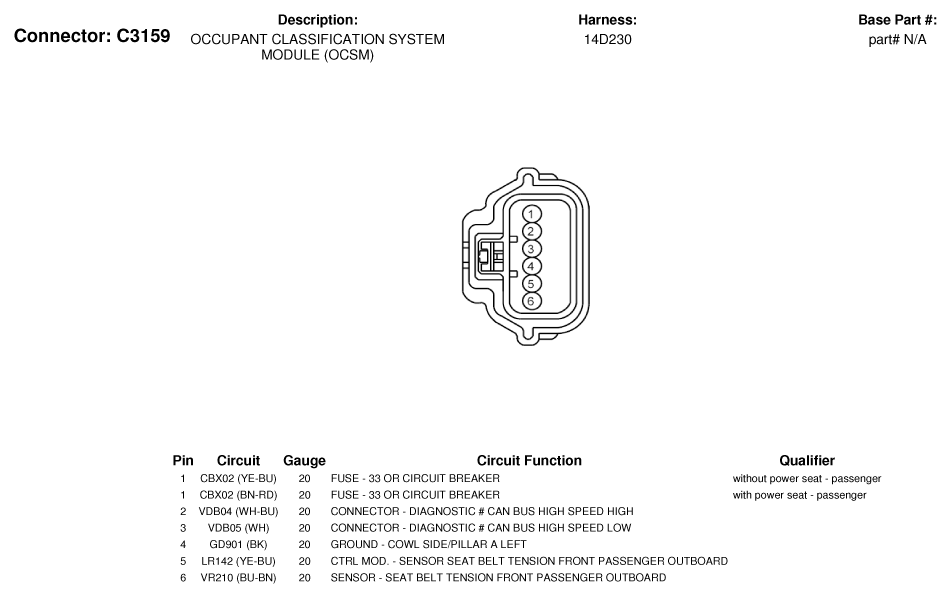

Fig 1: Occupant Classification System Module Connector End View (C3159)
G07328167Courtesy of FORD MOTOR CO.
