Exploded View

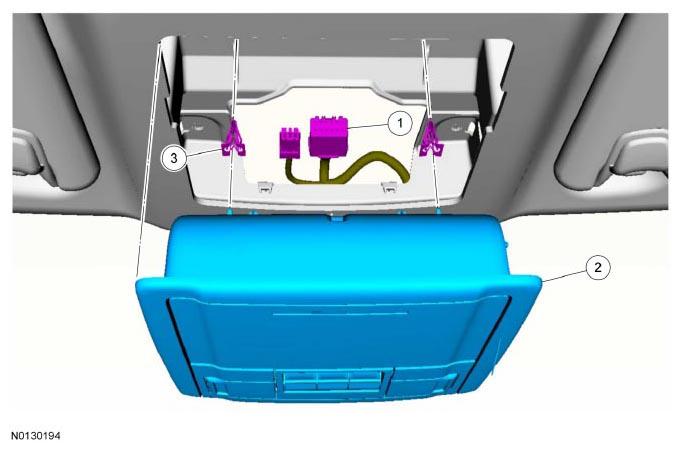

Fig 1: View Of Overhead Console And Components
G07429341Courtesy of FORD MOTOR CO.
CONSOLE PARTS DESCRIPTION CHART

Item Service Part Number Description
1 14334 Overhead console electrical connector
2 78519A70 Overhead console
3 - Overhead console clips (2 required)
