Exploded View

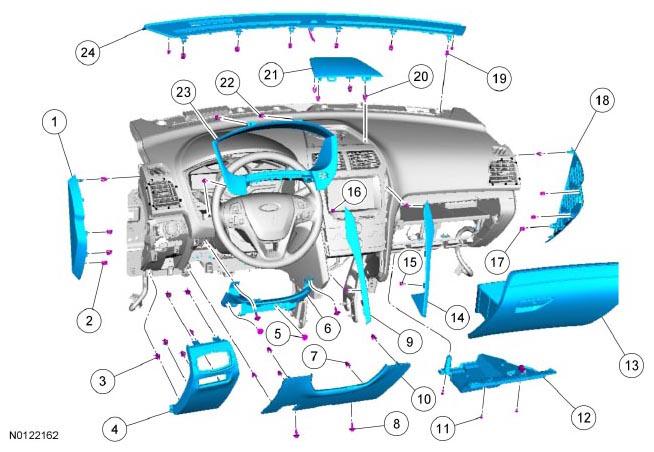

INSTRUMENT PANEL PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | 7804480 | Left Hand (LH) instrument panel side trim panel | - |
| 2 | W790172 | Left Hand (LH) instrument panel side trim panel clip (4 required) | - |
| 3 | W705289 | Lower Left Hand (LH) instrument panel trim panel clip (6 required) | - |
| 4 | 7804338 | Lower Left Hand (LH) instrument panel trim panel | - |
| 5 | N807316 | Steering column cover assembly screw (4 required) | 5 Nm (44 lb-in) |
| 6 | 78017A26 | Steering column cover assembly | - |
| 7 | W705289 | Steering column cover trim panel clip (4 required) | - |
| 8 | W707628 | Steering column cover trim panel screw (2 required) | 3 Nm (27 lb-in) |
| 9 | 78061A17 | Left Hand (LH) finish panel | - |
| 10 | 7804459 | Steering column cover trim panel | - |
| 11 | W707607 | Instrument panel insulator screw (3 required) | 3 Nm (27 lb-in) |
| 12 | 78046A24 | Instrument panel insulator | - |
| 13 | 7806024 | Glove compartment | - |
| 14 | 78061A16 | Right Hand (RH) finish panel | - |
| 15 | W705289 | Right Hand (RH) finish panel clip (4 required) | - |
| 16 | W705289 | Left Hand (LH) finish panel clip (4 required) | - |
| 17 | W790172 | Right Hand (RH) instrument panel side trim panel clip (4 required) | - |
| 18 | 7804481 | Right Hand (RH) Instrument panel side trim panel | - |
| 19 | W790172 | Defroster grille clip (6 required) | - |
| 20 | W790172 | Speaker grille clip (4 required) | - |
| 21 | 18978 | Speaker grille | - |
| 22 | 78044D70 | Instrument cluster finish panel | - |
| 23 | W705289 | Instrument cluster finish panel clips | - |
| 24 | 78044E82 | Defroster grille | - |

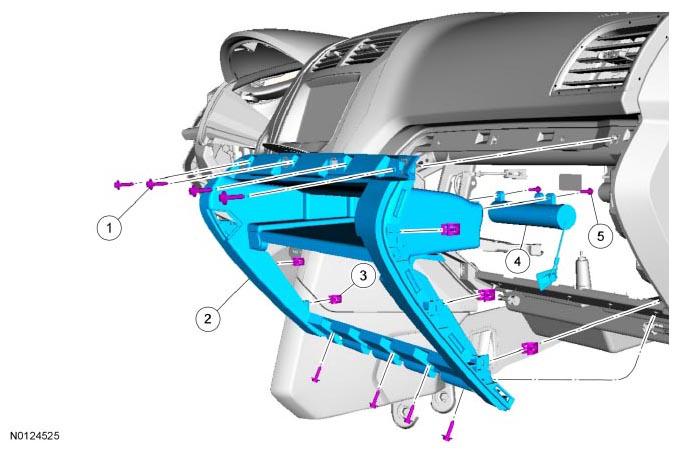

GLOVE COMPARTMENT CLOSE OUT PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | W707628 | Glove compartment close out panel screw (8 required) | 3 Nm (27 lb-in) |
| 2 | 7804338 | Glove compartment close out panel | - |
| 3 | W790172 | Glove compartment close out panel clip | - |
| 4 | 7806200 | Glove compartment dampener | - |
| 5 | W506824 | Glove compartment dampener screw (2 required) | 3 Nm (27 lb-in) |

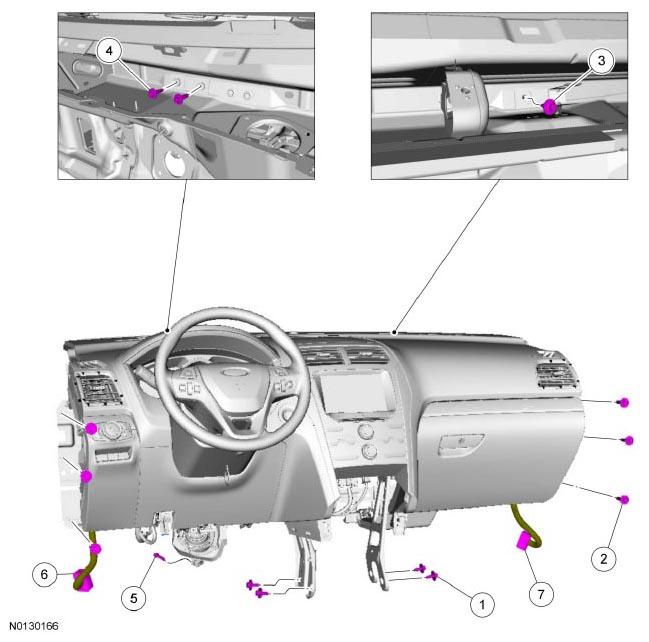

INSTRUMENT PANEL FASTENERS TORQUE SPECIFICATIONS
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | W709268 | Instrument panel-to-floor bolt (4 required) | 25 Nm (18 lb-ft) |
| 2 | W710259 | Instrument panel-to-body bolt (6 required) | 40 Nm (30 lb-ft) |
| 3 | W709178 | Right Hand (RH) instrument panel-to-front of dash bolt | 25 Nm (18 lb-ft) |
| 4 | W709178 | Left Hand (LH) instrument panel-to-front of dash bolt (2 required) | 25 Nm (18 lb-ft) |
| 5 | W712961 | Steering column shaft-to-steering column bolt | 23 Nm (17 lb-ft) |
| 6 | 14401 | Right Hand (RH) electrical connector | - |
| 7 | 14401 | Left Hand (LH) electrical connector | - |
