General Procedure

NOTE: Refer to general specifications in the appropriate 303-01 engine section for the appropriate specification.

Measure the free length of each valve spring.

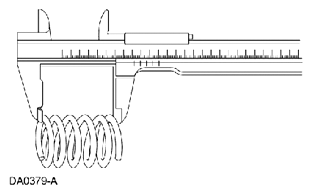

Fig 1: Measuring Free Length Of Each Valve Spring
G07420906Courtesy of FORD MOTOR CO.
