General Procedure

NOTE: Refer to general specifications in the appropriate 303-01 engine section for the appropriate specification.

Measure the installed length of each valve spring.

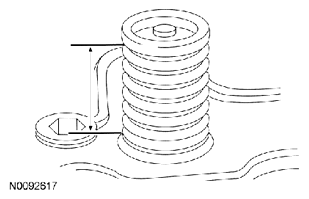

Fig 1: Identifying Installed Length Of Valve Spring
G07420905Courtesy of FORD MOTOR CO.
