Driver Side Air Bag Module Connector - C367

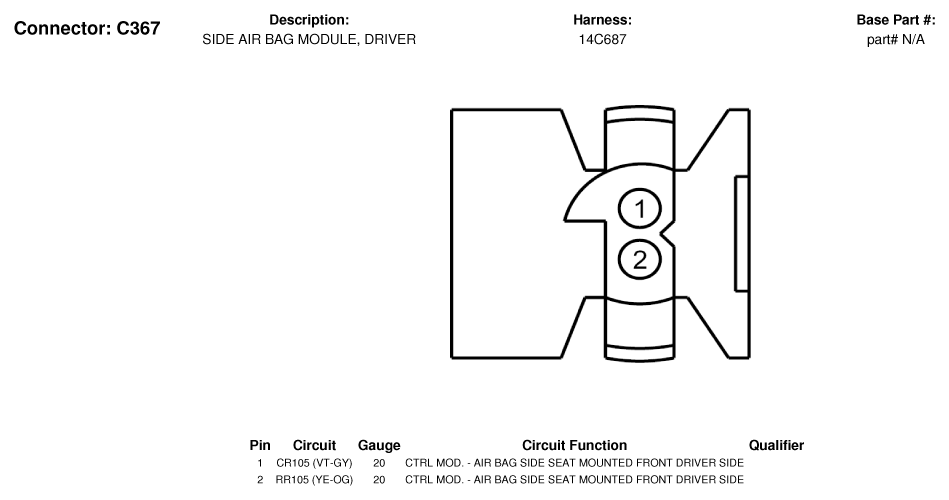

Fig 1: Driver Side Air Bag Module Connector End View (C367)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
