Left Side Safety Canopy Module Connector - C3321

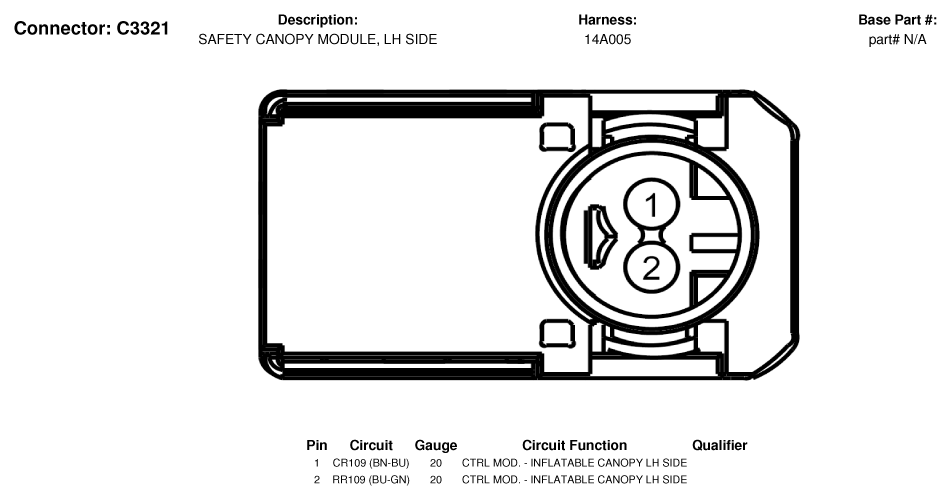

Fig 1: Left Side Safety Canopy Module Connector End View (C3321)
G07328186Courtesy of FORD MOTOR CO.
