Auxiliary Step / Running Board Module: Service and Repair

Power Running Board (PRB) Module









Removal and Installation

1. Remove the C-pillar trim panels. For additional information, refer to Interior Trim and Ornamentation C-Pillar Trim Panel.

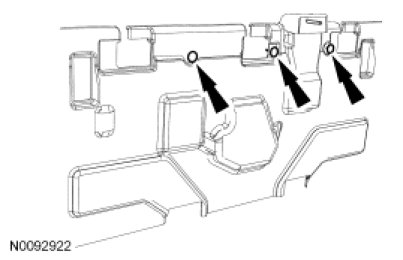

2. Remove the 3 rear sound insulator pin-type retainers and remove the rear sound insulator.

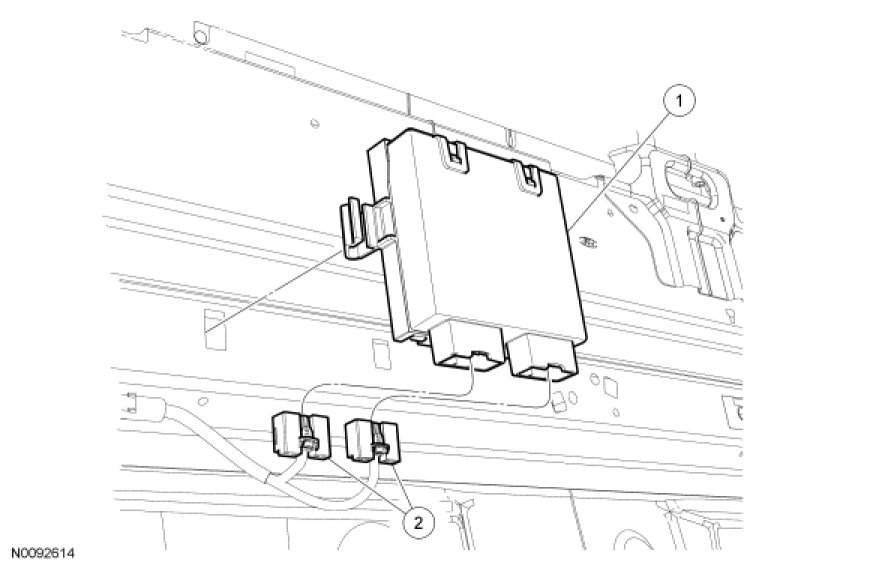

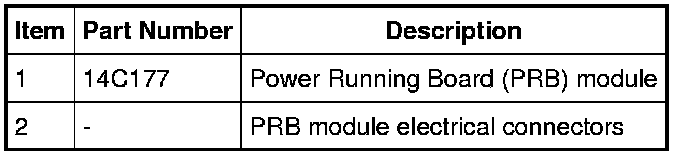

3. Disconnect the Power Running Board (PRB) module electrical connectors.

4. Remove the PRB module.

5. To install, reverse the removal procedure.
