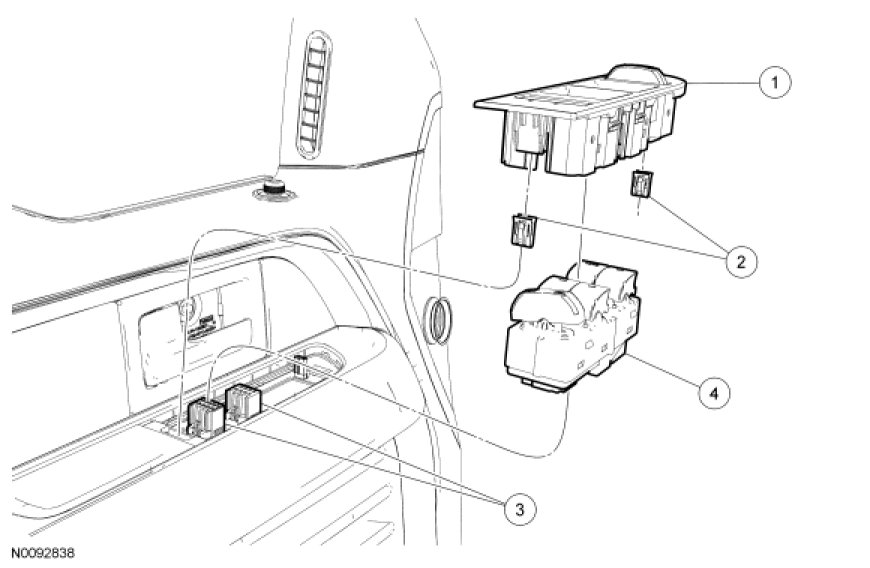

Window Control Switch - Front

Window Control Switch - Front

NOTE: LH shown, RH similar.









Removal and Installation

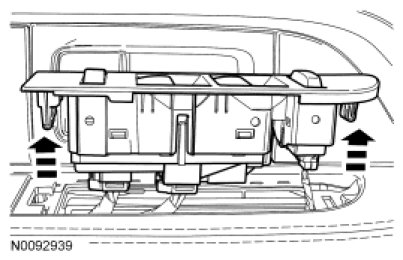

1. Using a suitable trim tool, release the 2 clips on the outer edge of the window control switch bezel and pull the window control switch assembly straight upward.





2. Disconnect the window control switch electrical connectors.

3. Release the tabs and remove the window control switch from the bezel.

4. To install, reverse the removal procedure.
