Window Control Switch - Rear




Window Control Switch - Rear

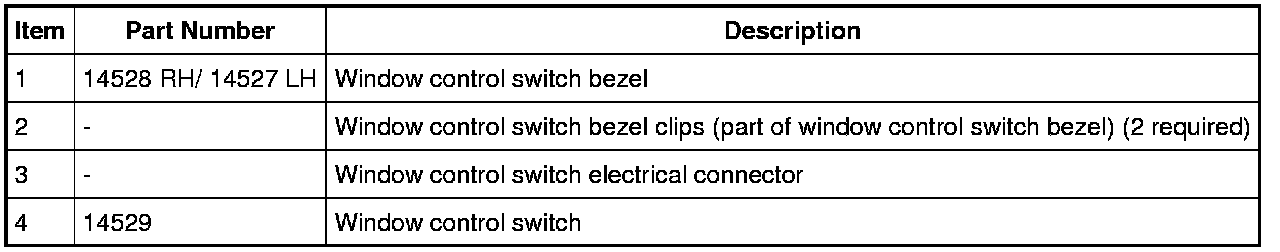

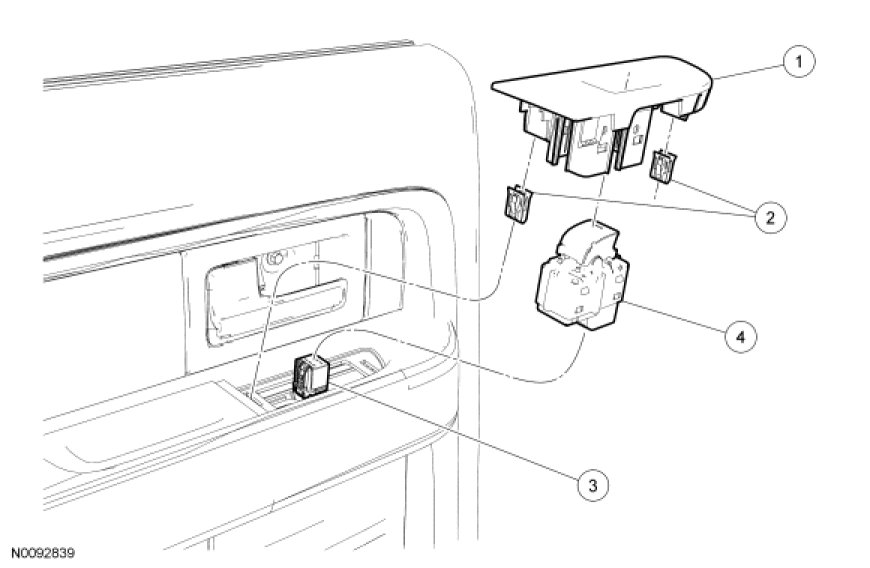

NOTE: LH shown, RH similar.









Removal and Installation

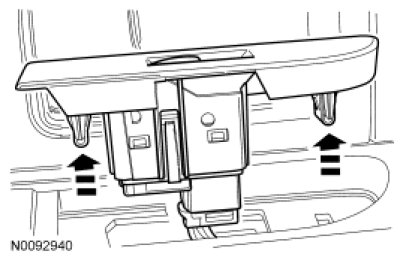

1. Using a suitable trim tool, release the 2 clips on the outer edge of the window control switch bezel and pull the window control switch assembly straight upward.





2. Disconnect the window control switch electrical connector.

3. Release the tabs and remove the window control switch from the bezel.

4. To install, reverse the removal procedure.
