Front Controls/Display Interface Module (FCDIM)

Front Controls/Display Interface Module (FCDIM)









Removal and Installation

1. NOTE: Module configuration is only required if a new Front Control/Display Interface Module (FCDIM) is being installed.

Upload the FCDIM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Module Configuration Programmable Module Installation (PMI).

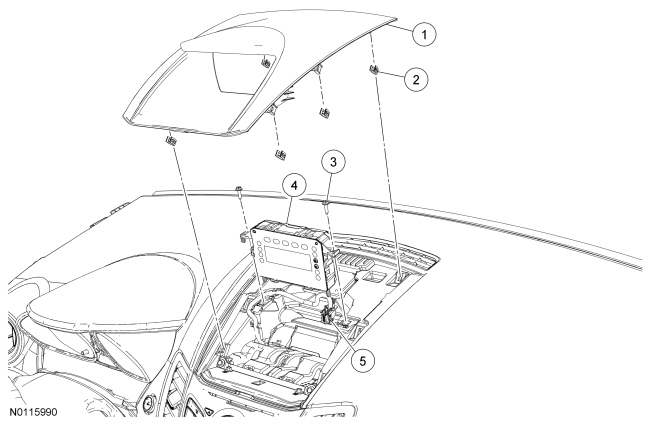

2. Remove the instrument panel upper finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel.

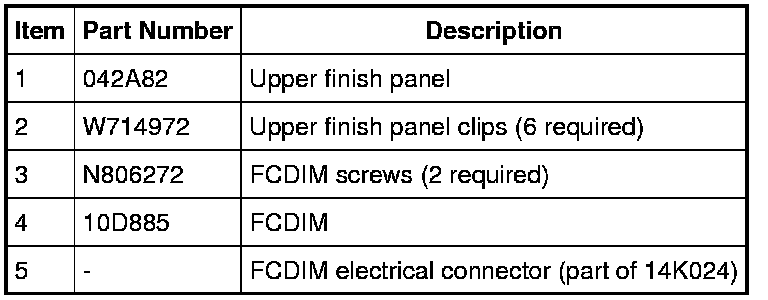

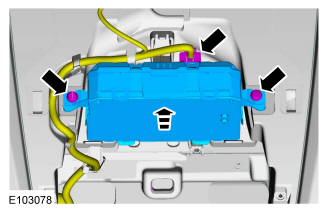

3. Remove the two screws and remove the FCDIM.
- Disconnect the FCDIM electrical connectors.





4. To install, reverse the removal procedure.
- Download the configuration information to the FCDIM. For additional information, refer to PMI in Module Configuration Programmable Module Installation (PMI).
