Ignition Lock Cylinder

Ignition Lock Cylinder









Removal and Installation

1. Remove the PATS transceiver. For additional information, refer to Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) - Transceiver.

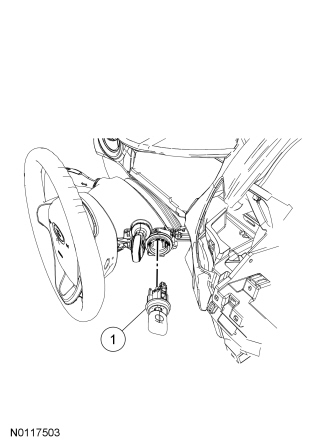

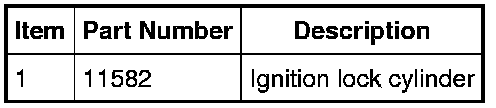

2. Remove the ignition lock cylinder.

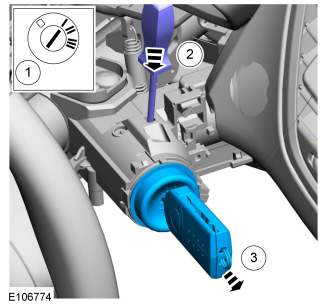

1. Position the ignition key to the ACC position.

2. Inset a suitable tool into the ignition lock cylinder release access hole and depress the ignition lock cylinder release button.

3. Pull outward on the ignition key and remove the ignition lock cylinder.





3. To install, reverse the removal procedure.
