Steering Linkage - Exploded View: Material

MATERIAL SPECIFICATIONS

Item	Specification
Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada)	ESA-M1C75-B

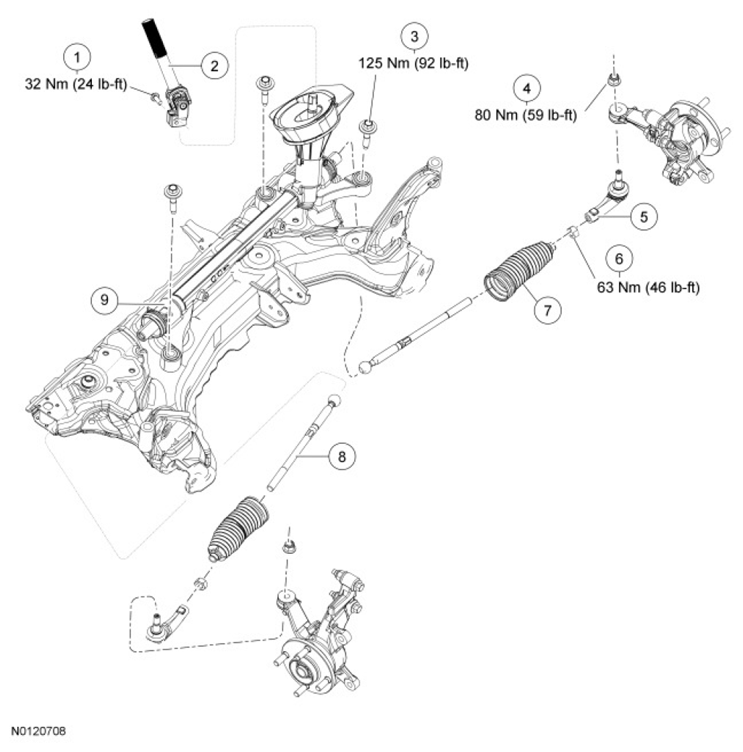

Fig 1: Exploded View Of Steering Linkage Components With Torque Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	3R827	Steering column shaft-to-gear bolt
2	3A525	Steering column shaft (or part of 3C529)
3	W712486	Steering gear bolts (3 required)
4	W520204	Outer tie-rod nut
5	3A130	Outer tie-rod end
6	W303694	Tie-rod end jam nut
7	3332	Steering gear bellows boot kit
8	3280	Inner tie-rod end
9	3504	Steering gear

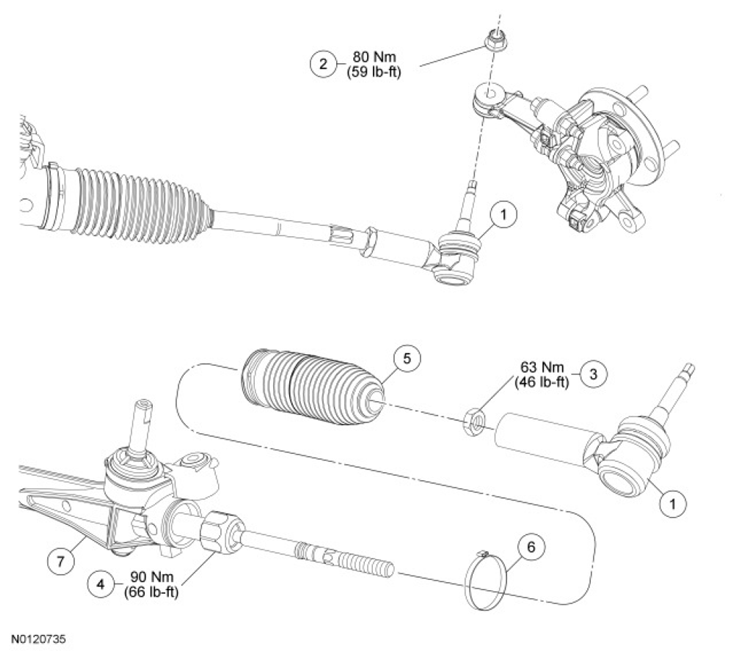

Fig 2: Exploded View Of Steering Linkage Components With Torque Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	3A130	Outer tie-rod end
2	W520204	Outer tie-rod nut
3	W303694	Tie-rod end jam nut
4	3280	Inner tie-rod end
5	-	Steering gear bellows boot kit (part of 3332A boot kit)
6	-	Steering gear bellows boot clamp, inner (part of 3332A boot kit)
7	3504	Steering gear
