Ambient Lighting Module: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

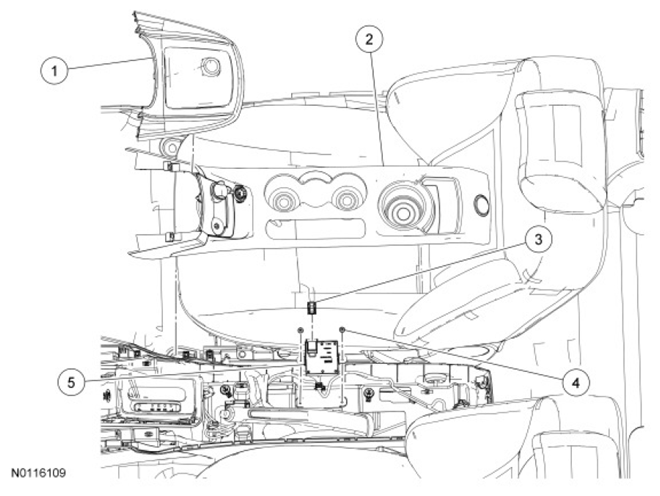

| Item |
Part Number |
Description |
| 1 |
- |
Lower instrument panel finish panel |
| 2 |
83B01 |
Floor console finish panel |
| 3 |
- |
Ambient lighting module electrical connector (part of 14K006) |
| 4 |
W790200 |
Ambient lighting module screws (2 required) |
| 5 |
13C788 |
Ambient lighting module |
