Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Module configuration is required when a new ACM is being installed.

Upload the ACM configuration information to the scan tool. For additional information, refer to PMI in MODULE CONFIGURATION .
Remove the instrument panel upper finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the 4 Front Controls Interface Module (FCIM) finish panel screws and rotate upwards from the bottom to release the 3 clips. Remove the Front Controls Interface Module (FCIM) finish panel.
- Disconnect the electrical connector.

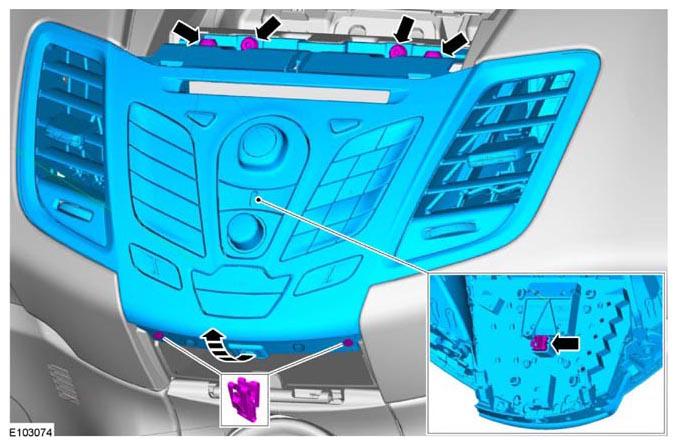

Fig 1: Locating Front Controls Interface Module Finish Panel Screws And Clips
Courtesy of FORD MOTOR CO.
Remove the ACM.
- Disconnect the ACM electrical connectors.
Fig 2: Removing ACM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Download the configuration information to the ACM. For additional information, refer to PMI in MODULE CONFIGURATION .
