Audio Input Jack: Notes

WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

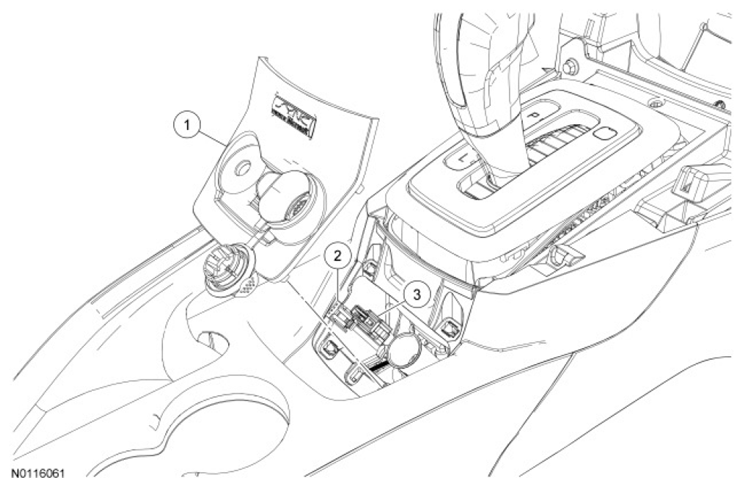

Fig 1: Identifying Audio Input Jack Components
G06939798Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19C149 Console bezel
2 19A164 Audio input jack
3 14D202 Universal Serial Bus (USB) port and cable
