Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel upper finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the two screws and remove the FCDIM.
    • Disconnect the FCDIM electrical connectors.

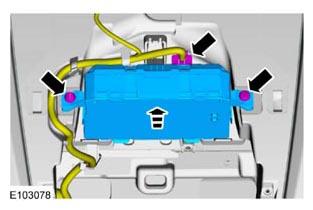

    Fig 1: Locating FCDIM Electrical Connectors And Screws
    G07980701Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
