Fuel Pump Control Module-Chassis Cab with Aft of Axle Fuel Tank
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

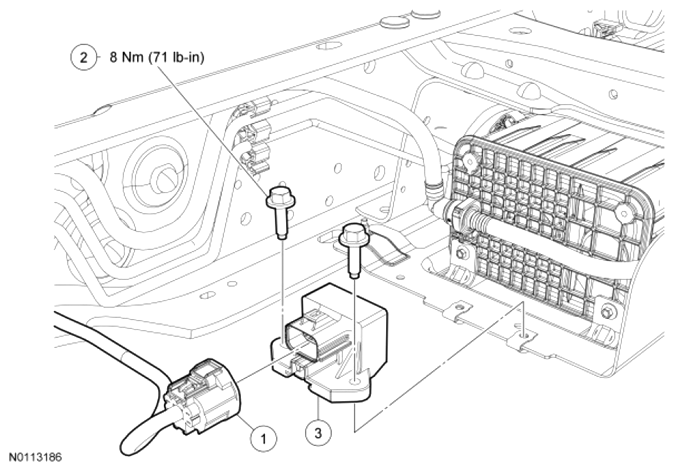

Fig 1: Exploded View Of Fuel Pump Control Module (Chassis Cab With Aft Of Axle Fuel Tank) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel pump control module electrical connector (part of 14A464) |
| 2 | N804804 | Fuel pump control module bolt (2 required) |
| 3 | 9D412 | Fuel pump control module |
