Fuel Pump Control Module-Pickup and Chassis Cab with Midship Fuel Tank
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

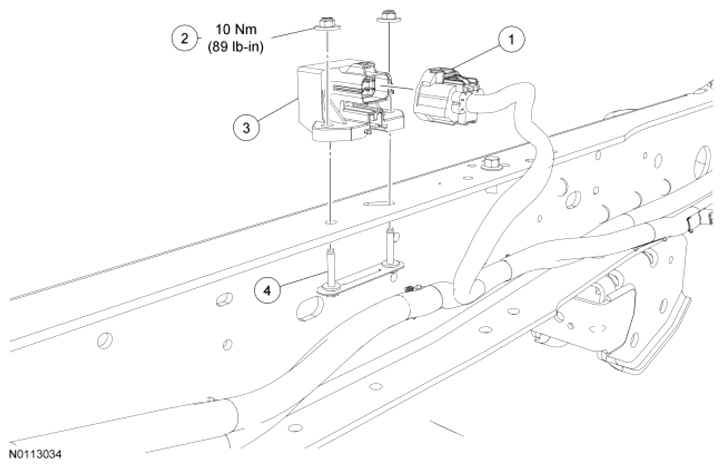

Fig 1: Exploded View Of Fuel Pump Control Module (Pickup And Chassis Cab With Midship Fuel Tank) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel pump control module electrical connector (part of 14A464) |
| 2 | W701014 | Fuel pump control module nut (2 required) |
| 3 | 9D412 | Fuel pump control module |
| 4 | W714758 | Stud plate |
