Camshaft Position (CMP) Sensor
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Lubricate the O-ring seals with clean engine oil.
Courtesy of FORD MOTOR CO.

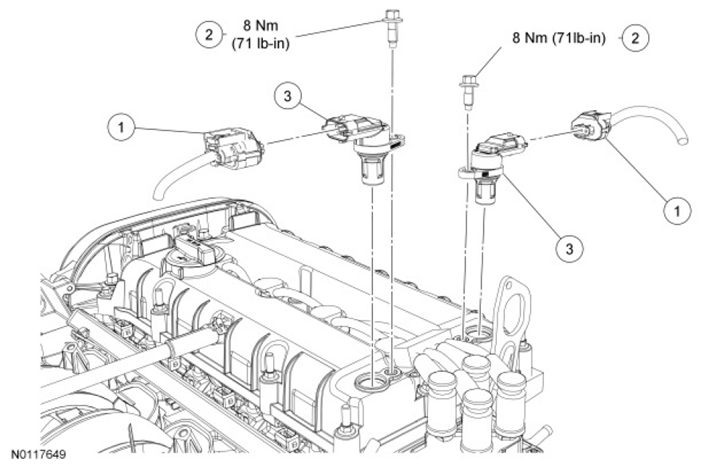

| Item |
Part Number |
Description |
| 1 |
- |
Camshaft Position (CMP) sensor electrical connector (part of 12B581) (2 required) |
| 2 |
W702251 |
CMP
sensor bolt (2 required) |
| 3 |
12K073 |
CMP
sensor (2 required) |
