Knock Sensor (KS)
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The RH Knock Sensor (KS) must be installed in the 4 o'clock position and the LH KS
must be installed in the 11 o'clock position. Failure to follow these instructions may result in damage to the engine.
NOTE:
The intake manifold must be removed to access the KS
. For additional information, refer to
ENGINE - 1.6L
.

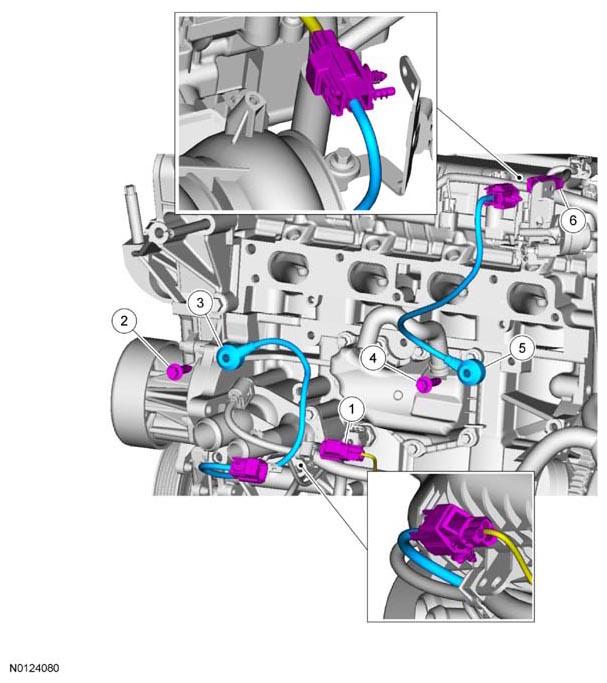

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH Knock Sensor (KS) electrical connector (part of 12B581) |
| 2 | W500225 | RH KS bolt - 20 Nm (177 lb-in) |
| 3 | 12A699 | RH KS |
| 4 | W500225 | LH KS bolt - 20 Nm (177 lb-in) |
| 5 | 12A699 | LH KS |
| 6 | - | LH KS electrical connector (part of 12B581) |
