Module Communications Network: Notes

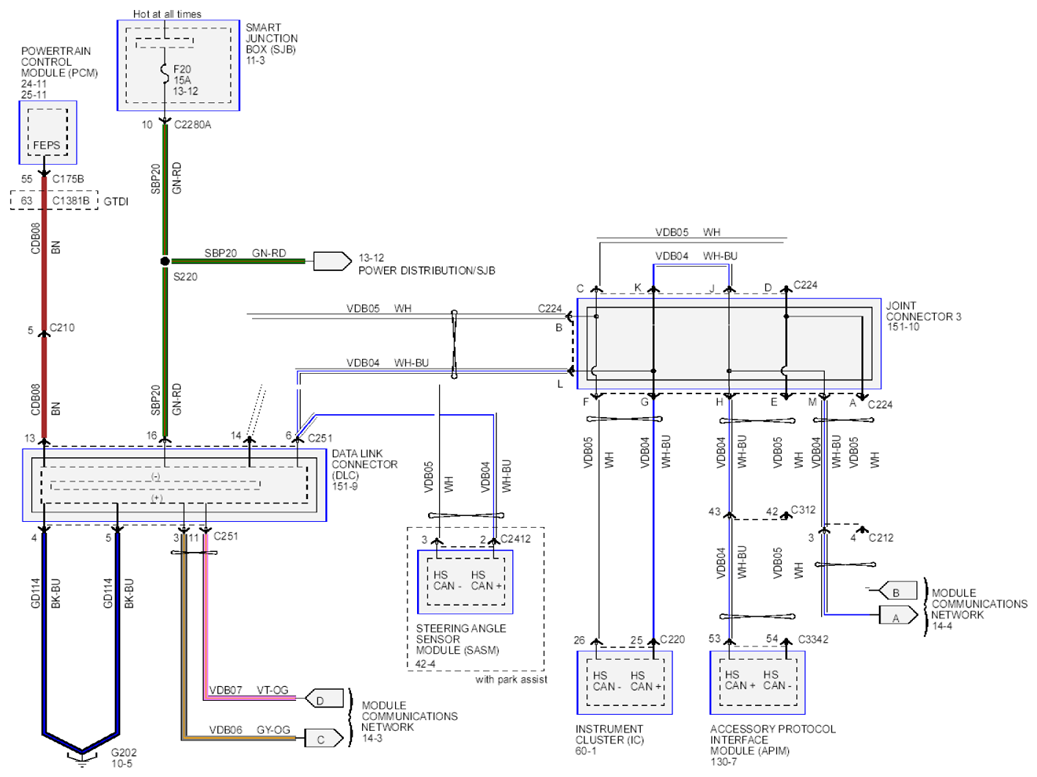

Fig 1: Module Communications Network Wiring Diagram (1 Of 7)

Courtesy of FORD MOTOR CO.

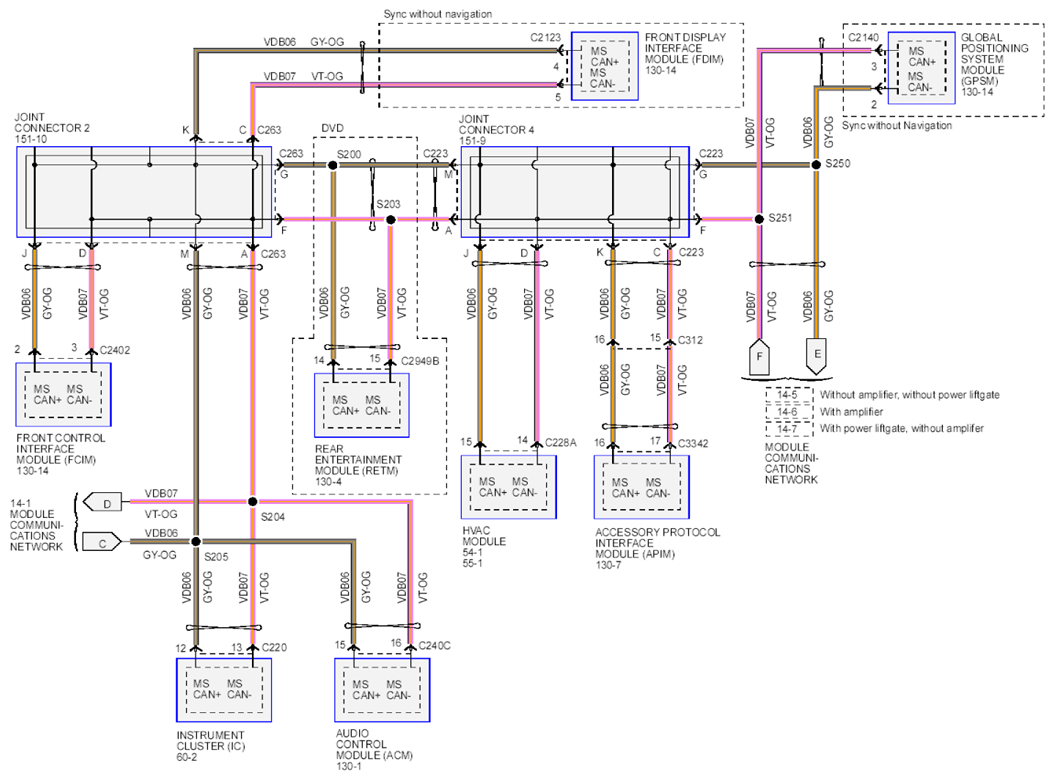

Fig 2: Module Communications Network Wiring Diagram (2 Of 7)

Courtesy of FORD MOTOR CO.

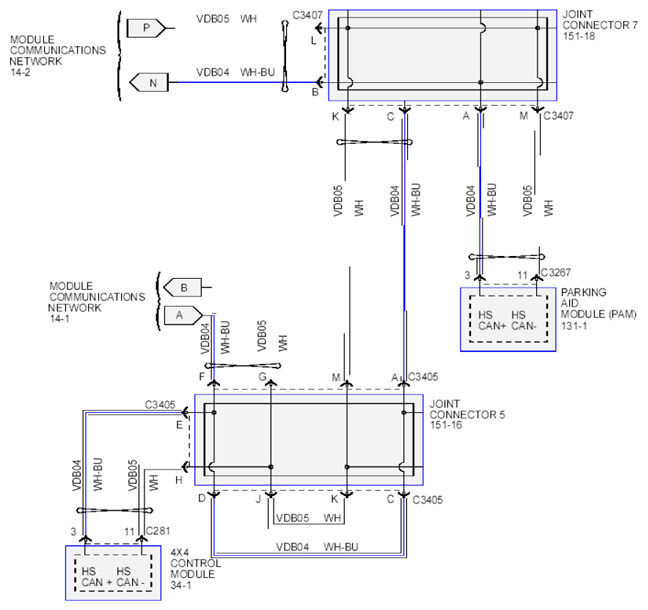

Fig 3: Module Communications Network Wiring Diagram (3 Of 7)

Courtesy of FORD MOTOR CO.

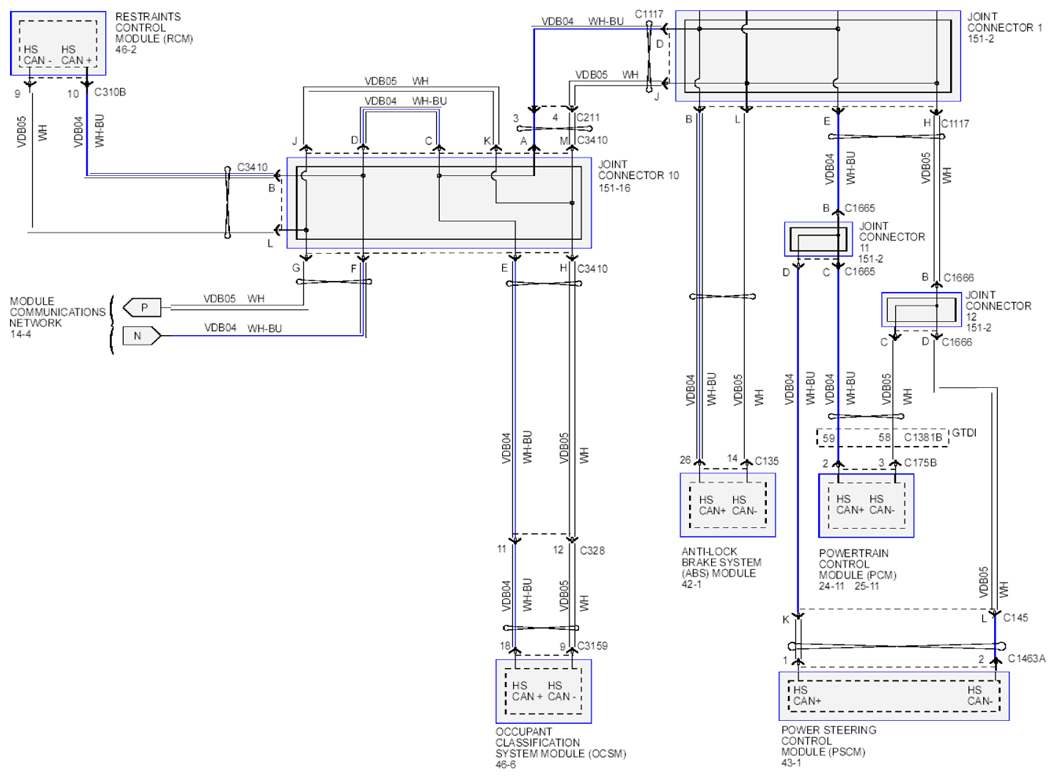

Fig 4: Module Communications Network Wiring Diagram (4 Of 7)

Courtesy of FORD MOTOR CO.
