Accessory Protocol Interface Module Connector - C3342

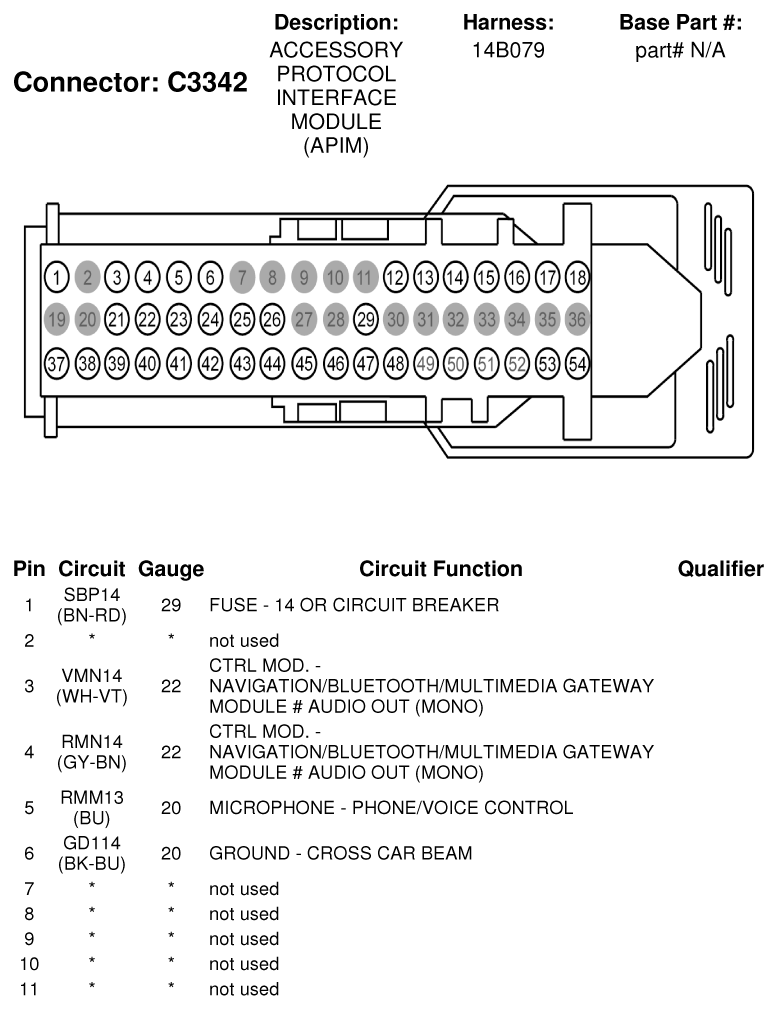

Fig 1: Accessory Protocol Interface Module Connector End View (C3342) (1 Of 3)

Courtesy of FORD MOTOR CO.

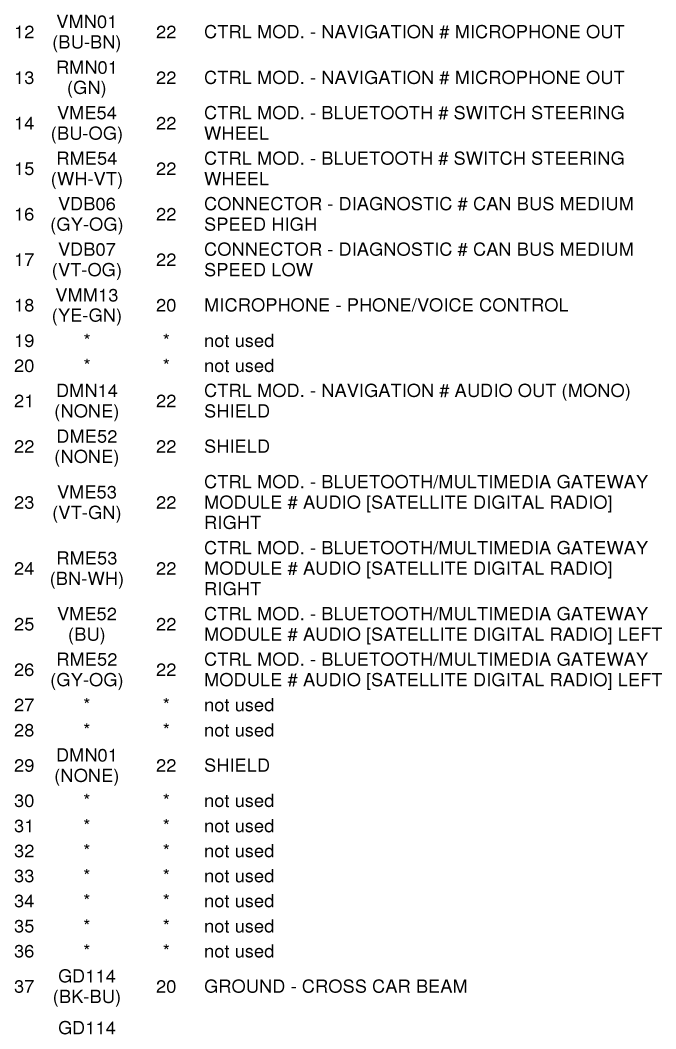

Fig 2: Accessory Protocol Interface Module Connector End View (C3342) (2 Of 3)

Courtesy of FORD MOTOR CO.

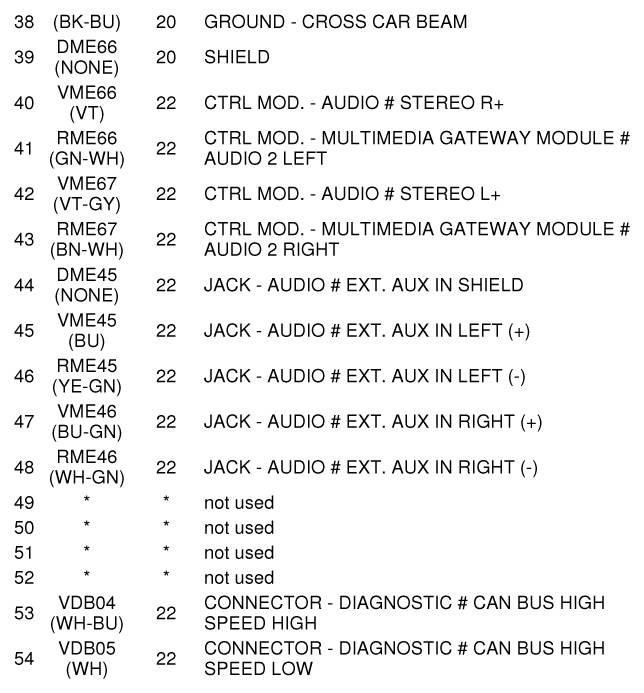

Fig 3: Accessory Protocol Interface Module Connector End View (C3342) (3 Of 3)

Courtesy of FORD MOTOR CO.
