Console Refrigeration Module Connector - C3415

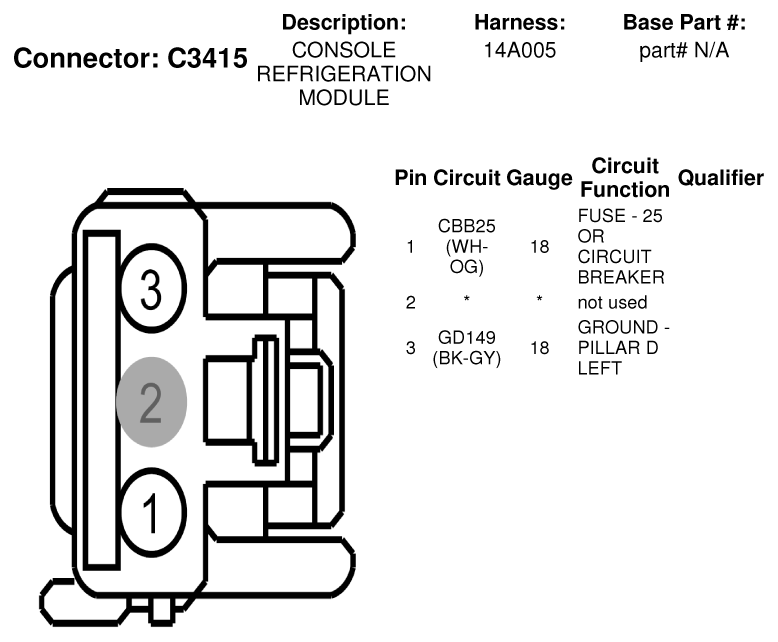

Fig 1: Console Refrigeration Module Connector End View (C3415)
G07335163Courtesy of FORD MOTOR CO.
