Four Wheel Drive Control Module Connector - C281

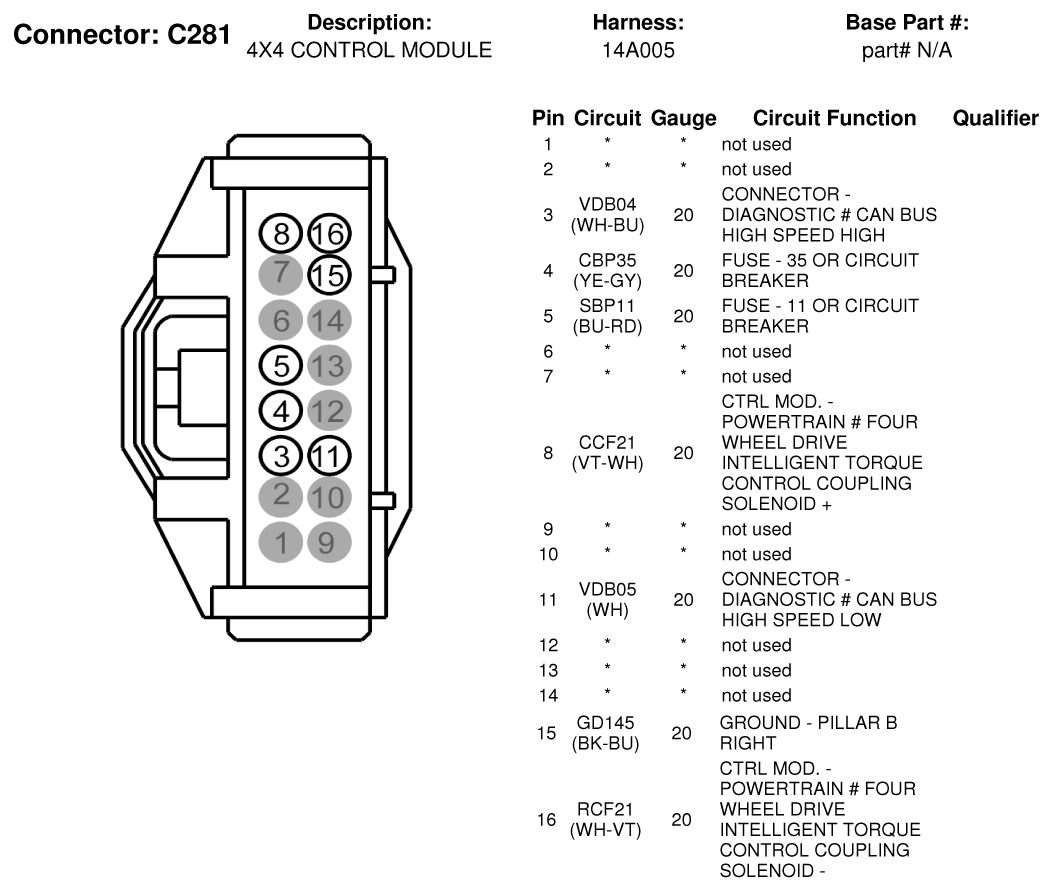

Fig 1: Four Wheel Drive Control Module Connector End View (C281)
G07334856Courtesy of FORD MOTOR CO.
