Refrigerator Switch: Notes

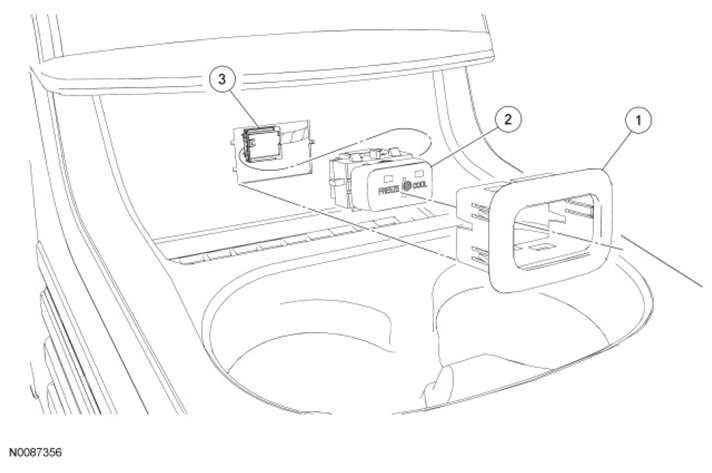

Fig 1: Exploded View Of Refrigerator Switch, Bezel And Electrical Connector
G07466858Courtesy of FORD MOTOR CO.
REFRIGERATOR SWITCH PARTS DESCRIPTION CHART

Item Part Number Description
1 14D468 Refrigerator switch
2 061B38 Refrigerator switch bezel
3 - Refrigerator switch electrical connector
