Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
  1. Position the RCM and install the bolts.
    • Tighten to 10 Nm (89 lb-in).
  2. Make sure the connector position assurance lever is in the full release position before attempting to connect the connector.
    Fig 1: Location of Connector Position Assurance Lever
    G08045196Courtesy of FORD MOTOR CO.
    3. NOTE: Putting the large electrical connector into the Restraints Control Module (RCM) on an angle can cause bad electrical connections and damage components.
  3. Position the large RCM electrical connector into the RCM.
      NOTE: Do not push the connector to the point where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the Restraints Control Module (RCM) before using the lever to fully seat the connector. Failure to follow these instructions may result in vehicle damage, equipment damage, component damage and/or system failure.
      Fig 2: Location of Large RCM Electrical Connector
      G08045197Courtesy of FORD MOTOR CO.
    • With the large electrical connector uniformly aligned to the RCM, lightly push in until a subtle audible click is heard and slight resistance is felt.
  4. Connect the large electrical connector.
    • Pivot the connector position assurance lever toward the RCM, drawing the connector in to the RCM.
      • Make sure the thumb tab is engaged to the retainer on the RCM and locked in place.

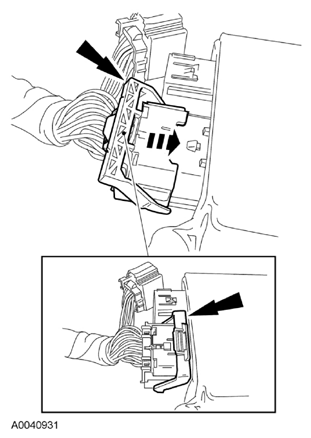

    Fig 3: Connecting RCM Electrical Connector
    G08045198Courtesy of FORD MOTOR CO.
  5. Connect the small electrical connector.
  6. Install the LH and RH floor console lower trim panels.
  7. Install the front seats. For additional information, refer to the Removal and Installation procedures in SEATING .
  8. Repower the SRS. For additional information, Refer to Supplemental Restraint System (SRS) Depowering and Repowering  .
  9. If a new RCM was installed, carry out the appropriate steps to complete Programmable Module Installation (PMI). For additional information, refer to MODULE CONFIGURATION .
