Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy® and cause serious personal injury or death.
NOTE: Always make sure the correct Supplemental Restraint System (SRS) component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage™ or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition is ON.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Carry out the steps necessary to prepare for Programmable Module Installation (PMI). For additional information, refer to MODULE CONFIGURATION .
  2. Depower the SRS. For additional information, Refer to Supplemental Restraint System (SRS) Depowering and Repowering  .
  3. Remove the front seats. For additional information, refer to the Removal and Installation procedures in SEATING .
  4. Remove the LH and RH floor console lower trim panels.
  5. Disconnect the small electrical connector.
  6. Disconnect the large electrical connector.
    1. Pinch the thumb tab and pivot the Connector Position Assurance (CPA) lever all the way back until it stops.
    2. Pull out and disconnect the RCM electrical connector.

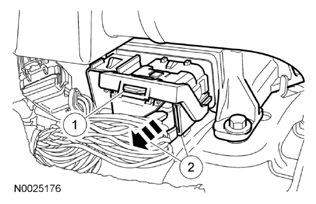

    Fig 1: Disconnecting Large RCM Electrical Connector
    G08045195Courtesy of FORD MOTOR CO.
  7. Remove the 3 bolts and RCM.
