Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

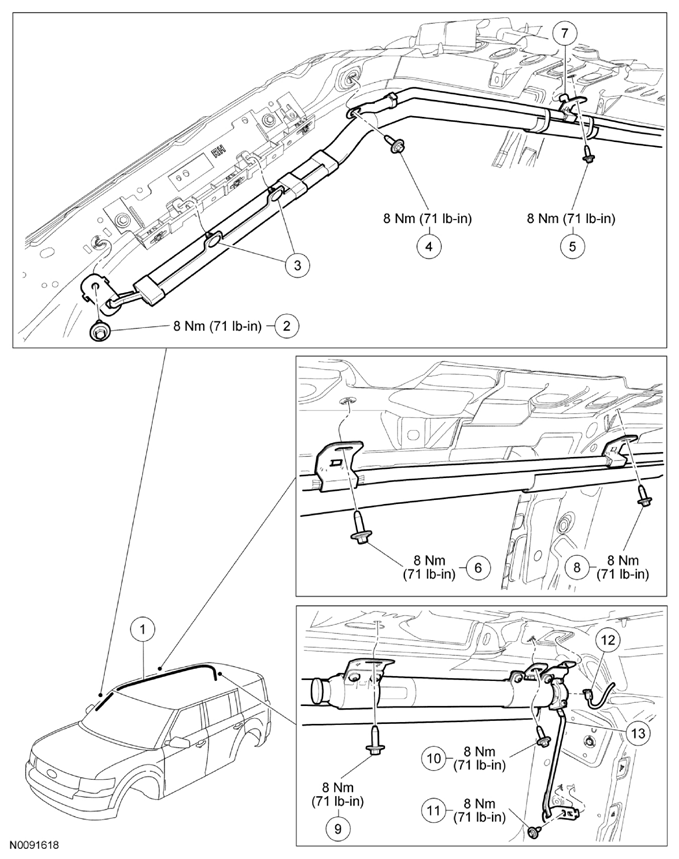

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | W713437 | Safety Canopy® module front tether bolt |
| 3 | - | Pin-type retainers (part of 042D94 RH/042D95 LH) |
| 4 | W713437 | Safety Canopy® module A-pillar bolt |
| 5 | W713437 | Safety Canopy® module B-pillar bolt |
| 6 | W713437 | Safety Canopy® module middle bolt |
| 7 | W713437 | Safety Canopy® module B-pillar hook |
| 8 | W713437 | Safety Canopy® module C-pillar bolt |
| 9 | W713437 | Safety Canopy® module front canister bolt |
| 10 | W713437 | Safety Canopy® module rear canister bolt |
| 11 | W713437 | Safety Canopy® module rear tether bolt |
| 12 | - | Safety Canopy® electrical connector (part of 14A005) |
| 13 | - | Rear tether routing clip (part of 042D94 RH/042D95 LH) |
