Audio Control Module (ACM): Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

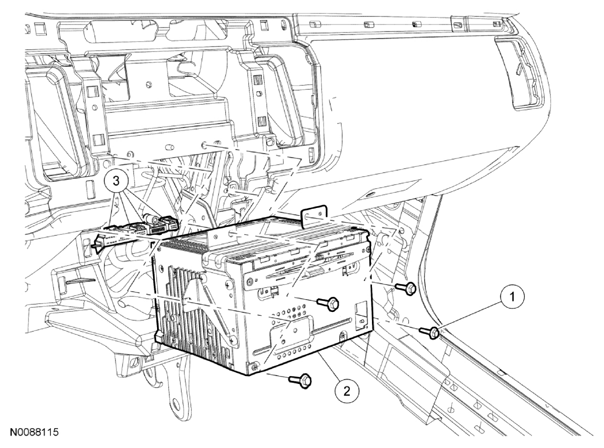

| Item |
Part Number |
Description |
| 1 |
W707628-S |
Audio Front Control Module (ACM) screws (4 required) |
| 2 |
18C869/18C815/18K931 |
ACM (single CD/6-CD/navigation) |
| 3 |
- |
ACM electrical connectors (part of 14401) |
