Front Controls Interface Module (FCIM): Notes

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicle with navigation shown in illustration, others similar.

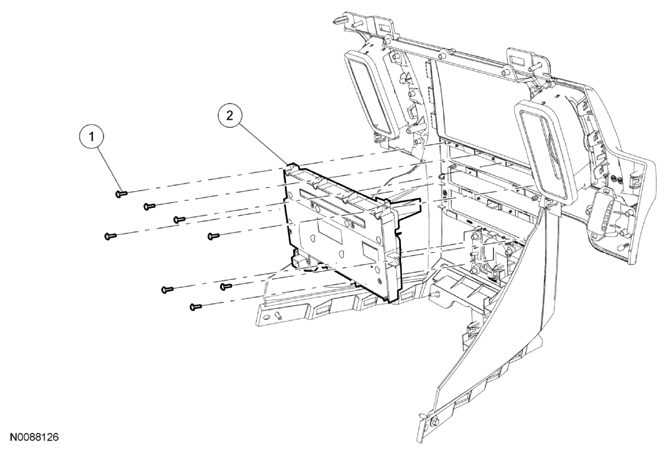

Fig 1: Identifying Front Controls Interface Module (FCIM) And Screws
G08043949Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713809-S Front Controls Interface Module (FCIM) screws (17 required for vehicles without navigation, 8 required for vehicles with navigation)
2 18842 FCIM
