Front Display Interface Module (FDIM): Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

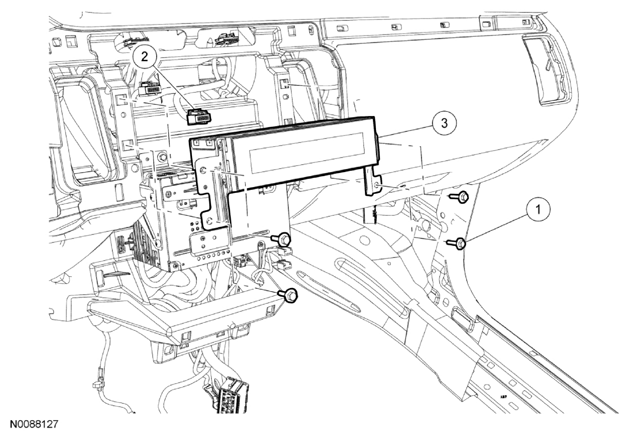

Without navigation shown in illustration, with navigation similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628-S | Front Display Interface Module (FDIM) screws (4 required) |
| 2 | - | FDIM electrical connector (part of 14401) |
| 3 | 10D885/10E899 | FDIM (without navigation/with navigation) |
