Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 RH lower instrument panel insulator pushpin retainers.

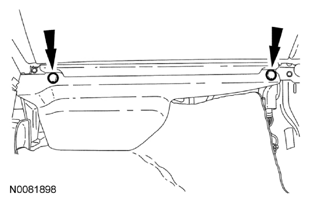

    Fig 1: Location of RH Lower Instrument Panel Insulator Pushpin Retainers
    G08043954Courtesy of FORD MOTOR CO.
  2. Remove the RH lower instrument panel insulator.
  3. Remove the 3 glove compartment screws.

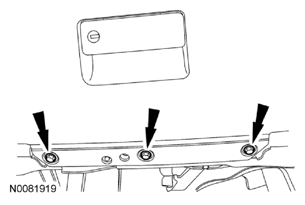

    Fig 2: Location of Glove Compartment Screws
    G08043955Courtesy of FORD MOTOR CO.
  4. Remove the glove compartment assembly.
    • Open and press in the 2 glove compartment door stops.
  5. Release the 2 clips and remove the Global Positioning System Module (GPSM).
    • Disconnect the electrical connector.
  6. To install, reverse the removal procedure.
