Driver Seat Module Connector - C341A

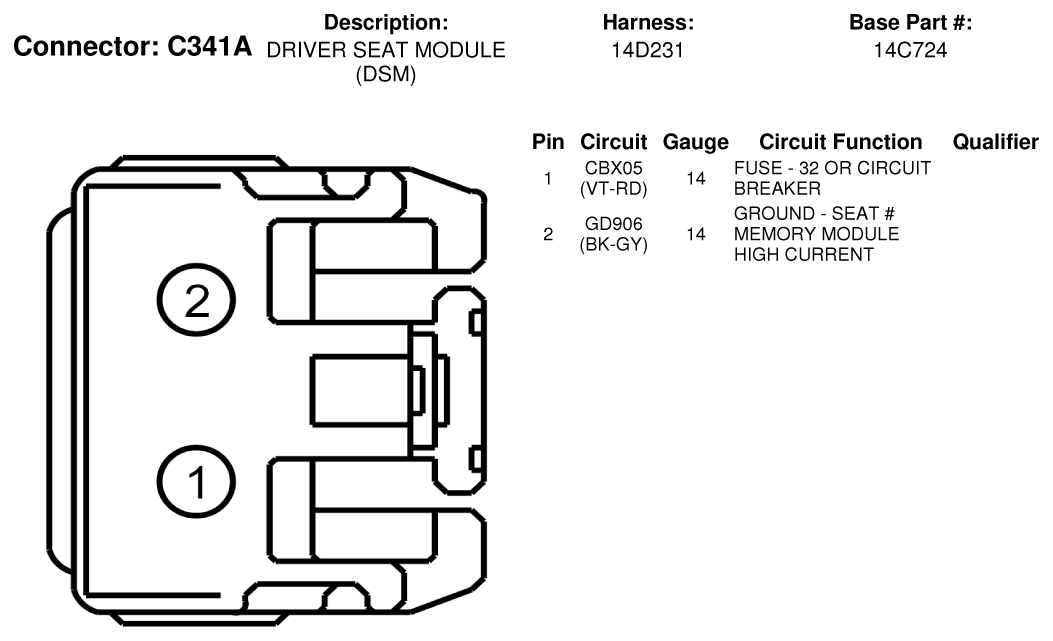

Fig 1: Driver Seat Module Connector End View (C341A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
